Armco Pedestrian Safety Ends
SKU AR133872
Quickest Available Delivery: 4 Week

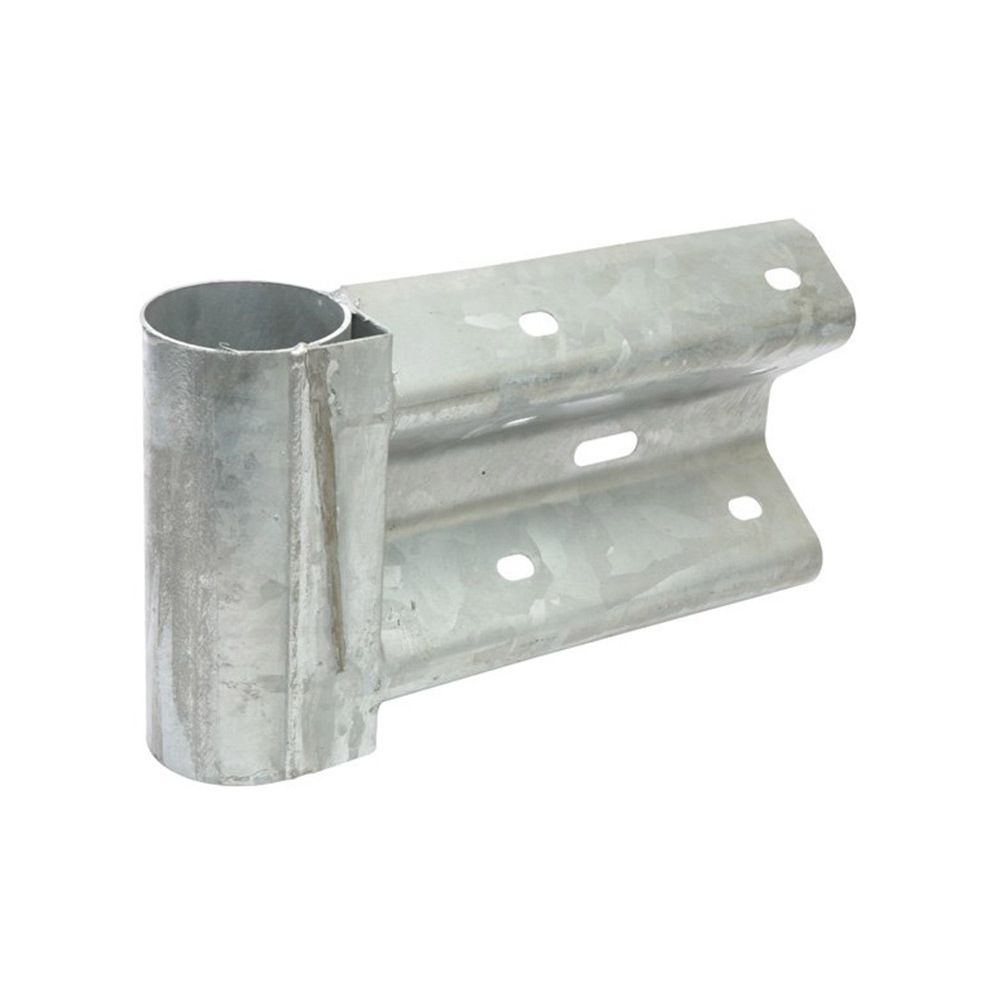

Armco Safety Barrier Pedestrian Ends are used at the end of a run of Armco Beams. The Pedestrian Ends has been designed to have no sharp edges in pedestrianised areas such as carparks or a where there is a doorway nearby.
See our Armco Barrier Calculator for pricing and a component breakdown once you input the length of the barrier system you require for your project.
Details
Installation:
When installing an Armco Safety Barrier set, you will require a number of accompanying products to set up your Barrier System.
For each Beam on your run, you will require:
- 8 x M16 x 35mm Lap Bolts to attach each beam to each other.
- 1 x M16 x 50mm Post Bolt to attach each beam to a post.
- 4 x M16 x 120mm Floor Anchor Bolts if you are using Bolt Down Posts.
- An addiitonal Post at the end of your run – with its own Post Bolt and Floor Anchor Bolts (if using Bolt Down Posts).
- An additional 8 x M16 x 35mm Lap Bolts to attach to your end – we have Pedestrian Ends and Fish Tail Ends available depending on your needs.
At HERMEQ, we supply all essential Armco components to enable you to set up a Crash Barrier system on your site for better safety and protection. We sell Straight Corrugated Steel Beams as well as Curved Beams which enable you to find a more versatile solution to fit your site needs. We RSJ and Z-Postsavailable depending on how robust you would like your Barrier system to be and they are both available as Bolt Down and Dig-In options. Other accessories we have available are Barrier Corners, Fish Tail Ends and Pedestrian Ends to complete your Armco Crash Barrier.
Spec Sheets
