HERMEQ DACHEcho Acoustic Barrier H9
Product Highlights
- Fast deployment: Lightweight 5.3kg format allows rapid single-person installation in around 30 seconds.
- Strong site durability: Fire, water, dust, UV and cold resistance support year-round outdoor use.
- Flexible fixing options: Suitable for attachment to temporary fencing, scaffolding and other site boundaries.
Alternative Products
SKU AB113001

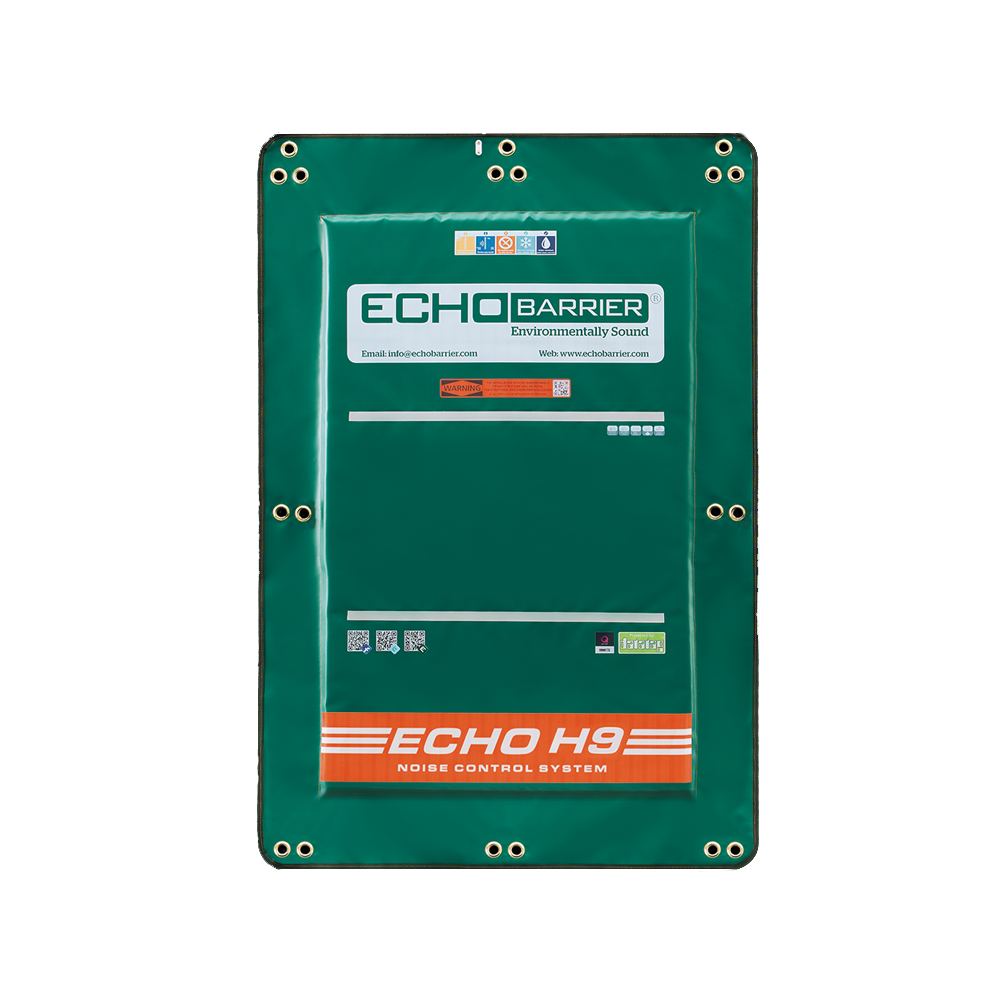

The Echo Acoustic Barrier H9 is a temporary acoustic barrier for fencing, scaffolding and other site boundaries. Lightweight and fast to install, it delivers strong noise reduction and absorption for construction, utilities and maintenance works in exposed outdoor conditions.
The Echo H9 Acoustic barrier is an outstanding industry leading product in noise absorption that has an all-round standard of certifications. Extremely portable with a mere weight of 5.3KG and tremendously impressive with its fire, water, dust, cold and UV resistant properties the H9 acoustic barrier is a must need product in any project that produce loud sounds.
The Echo Acoustic Barrier H9 is a portable temporary acoustic barrier designed to reduce noise on construction, utilities and maintenance sites. It is well suited to temporary fencing, scaffolding and other on-site structures where contractors need fast, practical noise control without adding unnecessary handling weight.
- Portable acoustic control: Easy to reposition as work zones change across site.
- Designed for temporary works: A strong fit for short-term and phased construction activity.
- Sound absorption and reduction: Helps limit noise spread rather than simply deflecting it elsewhere.
- Professional site presentation: Reflective strips and hazard icons support visibility and site safety.
- Useful in sensitive areas: Ideal where works take place near roads, occupied buildings or pedestrian routes.
Built for demanding outdoor use, the H9 combines strong acoustic performance with a lightweight format that can be installed quickly by one person. Its layered construction helps absorb sound rather than reflect it, making it a practical solution where sites need to control nuisance noise around workers, pedestrians and nearby buildings.
Product Certifications:
- Fire Resistant | BS 7837-1996, ASTM E84
- Water Restistant | BSEN 60529:1992 IPX6 / IPX9
- Dust Resistant | BSEN 60529-1992
- Cold Resistant | BSEN 60068/2/1:2007 (-40 Degrees)
- Tensile Test Standard | ISO 17025 (5.85 kN vertical, 1.1 kN horizontal)
- UV Resistant | 5 Years
Product Specifications
| Height | Width | Weight | Rolled Dimensions | Max Noise Reduction (Lab Tested) | Max Noise Absorption (Lab Tested) |
|---|---|---|---|---|---|
| 2050mm | 1335mm | 5.3KG | 400mm diameter, 1335mm | 43dB | 100% |
Comes with a 1 Year Manufacturers Guarantee.
HERMEQ stock a wide-range of Crowd Control Barriers, Traffic Barriers, Rope Barriers & Expandable Barriers conforming to all required safety specifications and regulations. Lightweight, easy to use & made with premium quality materials in the Ireland!
Need any help? Contact HERMEQ Today.
Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
What is the Echo Acoustic Barrier H9 used for?
It is used to reduce noise on construction, utility and maintenance sites by attaching to temporary fencing, scaffolding or other site boundaries.
Is the H9 barrier easy to install?
Yes. The barrier is lightweight and designed for fast deployment, with installation possible in around 30 seconds by one person.
Can the H9 barrier be used outdoors in Ireland?
Yes. It is built for outdoor use and is resistant to water, dust, UV exposure, fire and cold conditions.
Where can the H9 acoustic barrier be fitted?
It can be fitted to temporary fencing, scaffolding and other suitable site structures where temporary noise control is needed.
What type of projects is the H9 barrier suitable for?
It is well suited to construction sites, roadside works, utility projects, refurbishment works and other temporary environments where nuisance noise needs to be reduced.
