Heavy Duty Stability Base Steps
SKU LA317841
Quickest Available Delivery: 5 Week

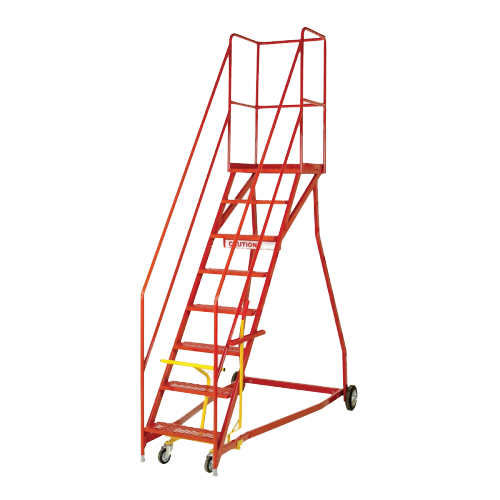

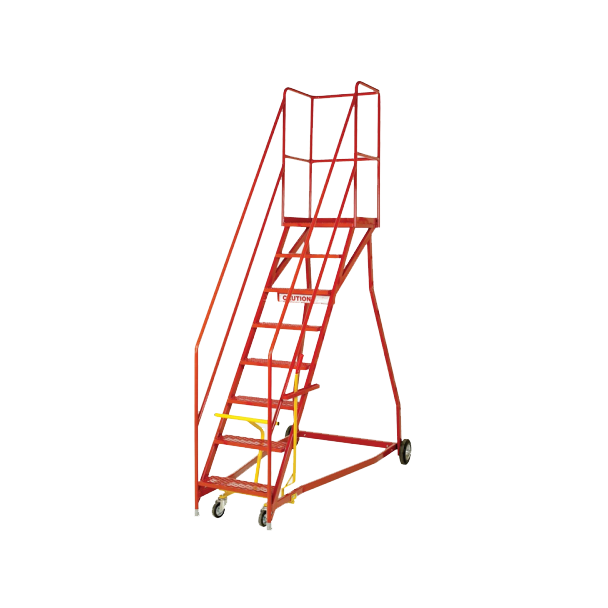

The Heavy Duty Stability Base Step Unit has been designed to offer excellent and superior stability for your area with its outboard wheels mounted on a splayed base frame. These Mobile Steps are commonly found in demanding warehouse environments and offer outstanding reliability and durability to withstand many years of sustained use.
These Step Units come available with a choice of 3 up to 15 treads including the platform and are designed with a hand lock lever anchorage to ensure that when locked the feet rest firmly on the ground.
Details
The main frame has a hardwearing red epoxy powder coated finished with a safety bar and hand lock lever mechanism in yellow to deter users from climbing steps when the unit is still mobile.
At the base of each steel leg comes fitted with two front swivel castors with 100mm diameter rubber tyred wheels with roller bearings and two rear axle mounted 200mm diameter wheels with rubber tyres and roller bearings.
Treads can be order with a Ribbed Rubber or Expanet Surface finish depending on your preference.
Our Portable Step range are the only BSI Kitemark Standard BS EN 131-7 internationally accredited range available in the Ireland after rigorous testing. This best in-class range sets a new benchmark for quality, durability, reliability and safety.
|
Treads |
Average Working Height |
Platform Height |
H x W x D (mm) |
|---|---|---|---|
| 3 | 2190mm | 690mm | 1690 x 780 x 955mm |
| 4 | 2420mm | 920mm | 1920 x 850 x 1120mm |
| 5 | 2650mm | 1150mm | 2150 x 910 x 1290mm |
| 6 | 2880mm | 1380mm | 2380 x 960 x 1425mm |
| 7 | 3110mm | 1610mm | 2610 x 1010 x 1610mm |
| 8 | 3340mm | 1840mm | 2840 x 1060 x 1790mm |
| 9 | 3570mm | 2070mm | 3070 x 1140 x 1955mm |
| 10 | 3800mm | 2300mm | 3300 x 1220 x 2130mm |
| 11 | 4030mm | 2530mm | 3530 x 1270 x 2290mm |
| 12 | 4260mm | 2760mm | 3760 x 1270 x 2400mm |
| 13 | 4490mm | 2990mm | 3990 x 1370 x 2560mm |
| 14 | 4720mm | 3220mm | 4220 x 1540 x 2730mm |
| 15 | 4950mm | 3450mm | 4450 x 1565 x 2890mm |
