Mesh Fence Feet Stabilised Locking System

SKU
A105558

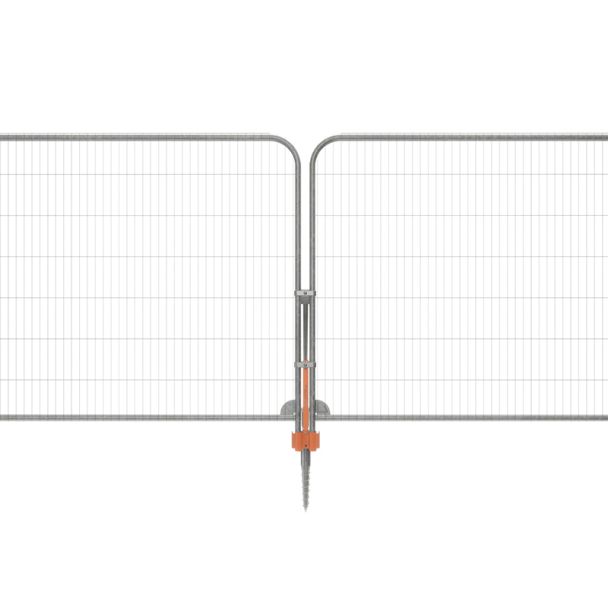

A stabilised fence locking system located at the feet of mesh fence panels. Utilising its stabilising brace this locking system has high wind-resistance and offers secure fence locking for soil, concrete and asphalt. Removable & Reusable the anti-trip locking system prevents accidents due to its compact design.

Locking System includes Fence Bracket, Locking Strap, Stabiliser Brace and a fixing option. Available in 3 fixing options: Soil, Concrete & Asphalt.

As low as €116.59 €143.41
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

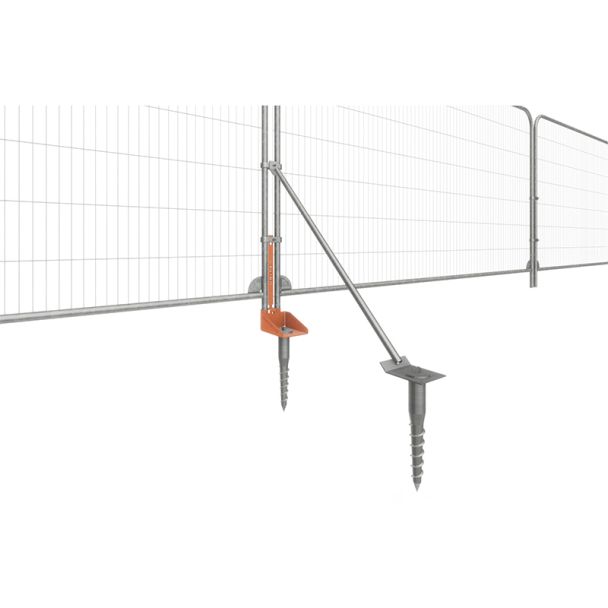

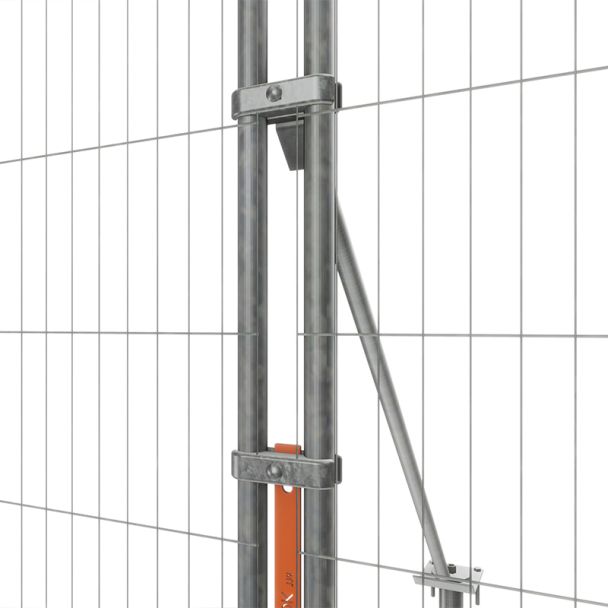

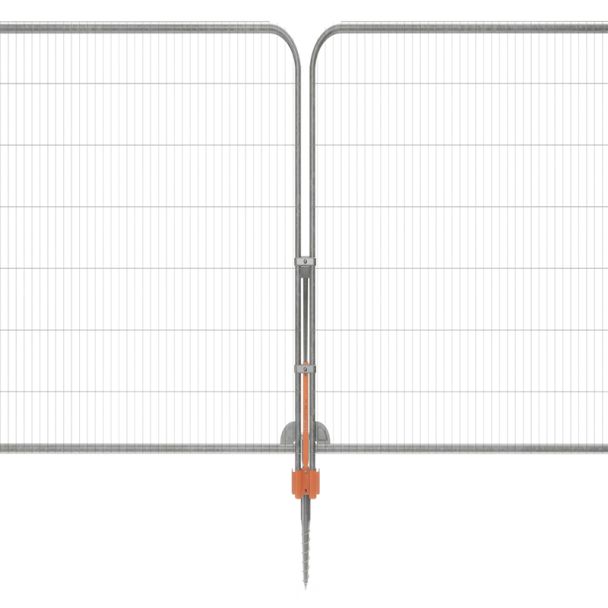

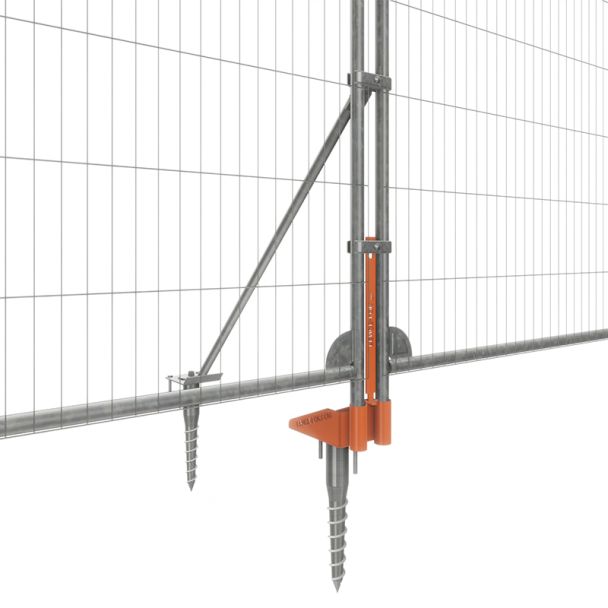

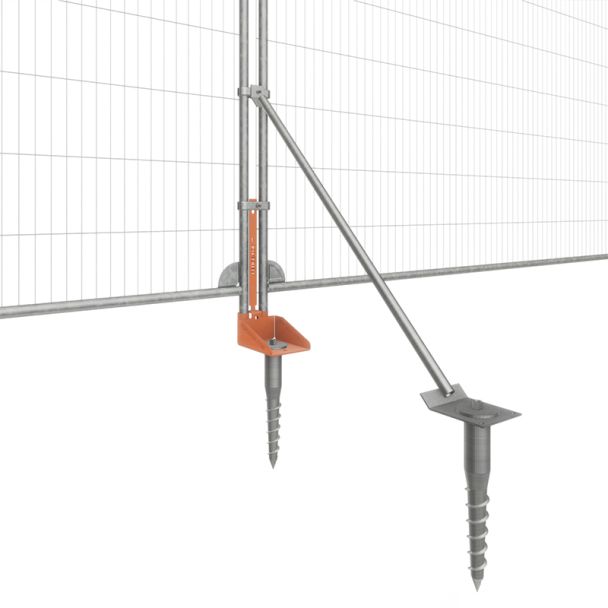

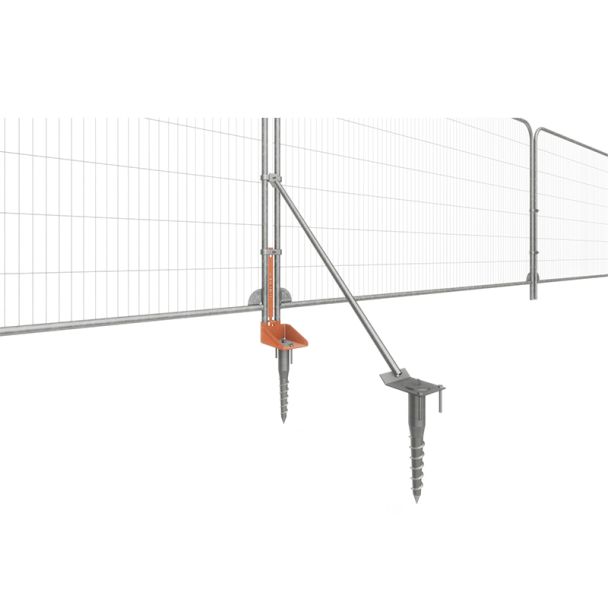

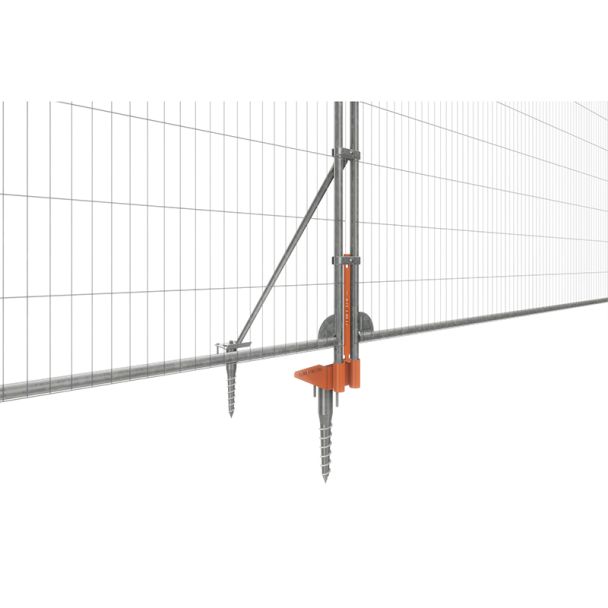

Stabilised for secure placement of mesh fencing panels this locking system ensures fencing is securely placed down on site. Commonly used on construction sites and outdoor events this locking system is easy to install, remove and reuse with a lightweight design that allows it to be easily transported. Consisting of an open mesh bracket, locking strap, stabilising brace and fixing (soil, concrete or asphalt) this easy-to-use locking system is environmentally friendly as wildlife cannot nest on the system.

The fence locking system has a zero trip design on the pedestrian side due to its compact and intricate design. Due to its stabilising brace the locking system is highly wind-resistant, withstanding harsh wind currents.

Product Features:

  • Compact & lightweight fence locking system
  • Easy to install, remove and reuse
  • Anti-trip due to its compact size
  • Wind resistant
  • Stabilises mesh fence panels

Kit Includes:

  • Fence Bracket
  • Locking Strap
  • Stabilising Brace
  • Fixing Option - Soil, Concrete & Asphalt

Fixings

Soil Fixing: 2x Flanged Ground Screw - Hot dipped Galvanised Ground Screw

Concrete Fixing: 4x M12 Concrete Screws - High-performance concrete screw for easy installation

Asphalt Fixing: 4x M12 Asphalt Anchors - Metal anchor bolt with internal thread. Combined with chemical anchor resin for high durability

Product Specification

ProductSurface FinishWeightDimensions
Open Mesh BracketPowder Coated4.5KG290mm x 180mm x 120mm
Locking StrapPowder Coated0.5KG35mm x 460mm x 5mm
Stabilising BraceZinc Plated5KG1520mm x 160mm x 120mm
Flanged Ground Screw (Soil)Hot Dip Galvanised3KG530mm x 150mm x 68mm
Concrete ScrewZinc Plated0.1KGM12
Asphalt AnchorZinc Plated0.1KGM12

HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.
