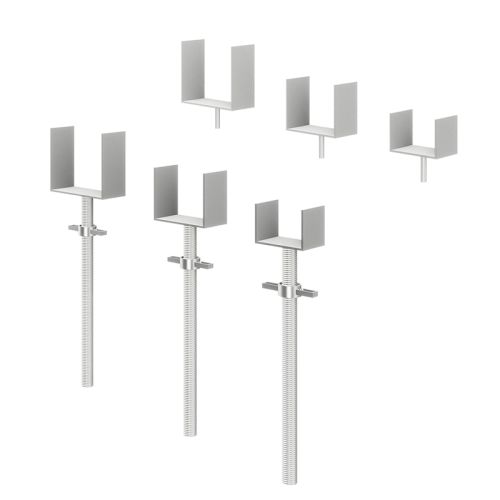

U-Head - Prop

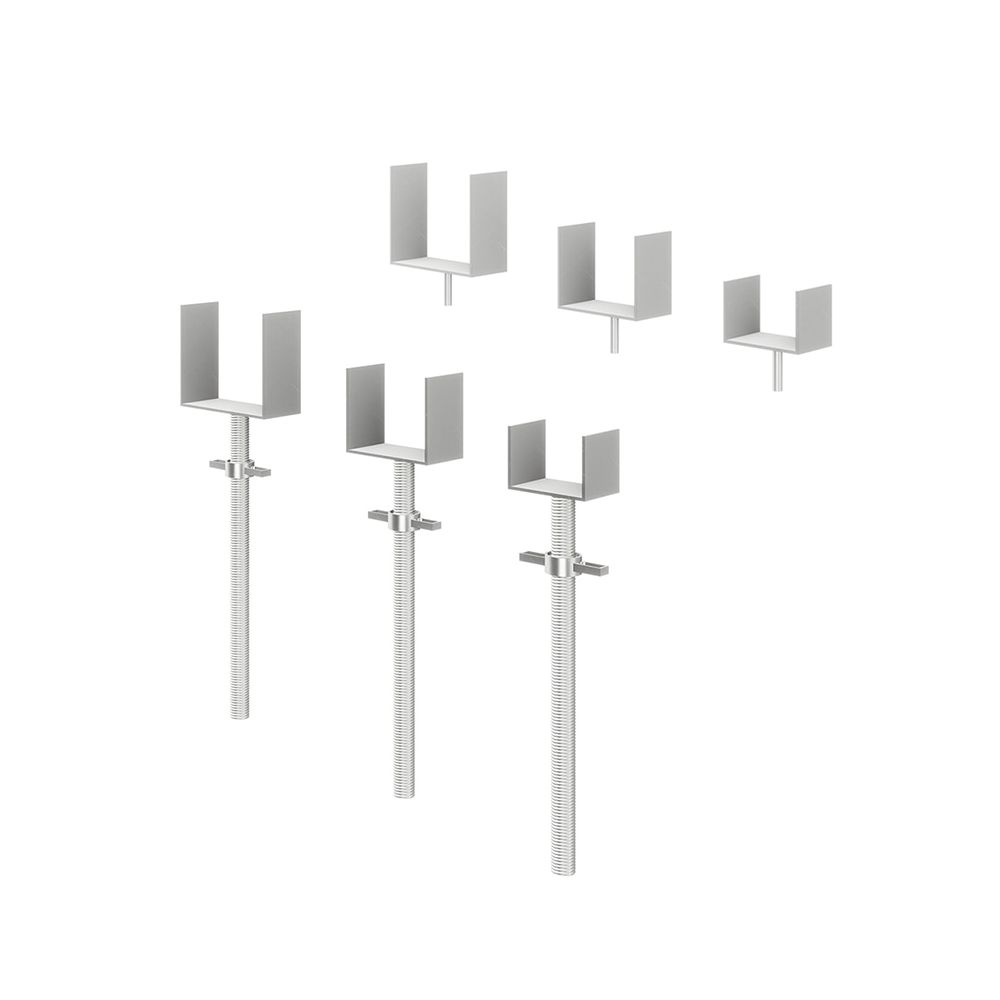

main product photo

SKU AP3432

U-Heads are designed to be used in conjunction with Adjustable Steel Props or System Scaffolding. The main function of a U-Head is to hold timber beams securely in place.
As low as €6.45 €7.93
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



Specification Sheets

The Fixed U-Head comes complete with a 75mm spigot, which slots directly into an Adjustable Steel Prop or System Scaffold. The spigot is 75mm in length with a diameter of 16mm.

For further adjustment the Adjustable U-Head can be used. It offers 500m of rolled threaded tube that can be adjusted by a double handle collar.

All of HERMEQ's U-Heads are manufactured in accordance with ISO 9001:2000 quality system accreditation.

Technical Information:

  • Safe working load: 4000kg (concentric loading).
  • Adjustable U-Head Thread: TPI Acme BS4360/50C.
  • U-Heads are independently tested and comply with Metal Scaffolding Standards BS1139 and EN74.

HERMEQ stock a wide-range of Scaffolding Equipment, Ladders & Jacks, Building Equipment & Accessories conforming to all required safety specifications and regulations.
