V Mesh Fence Feet Locking System

SKU
A105550

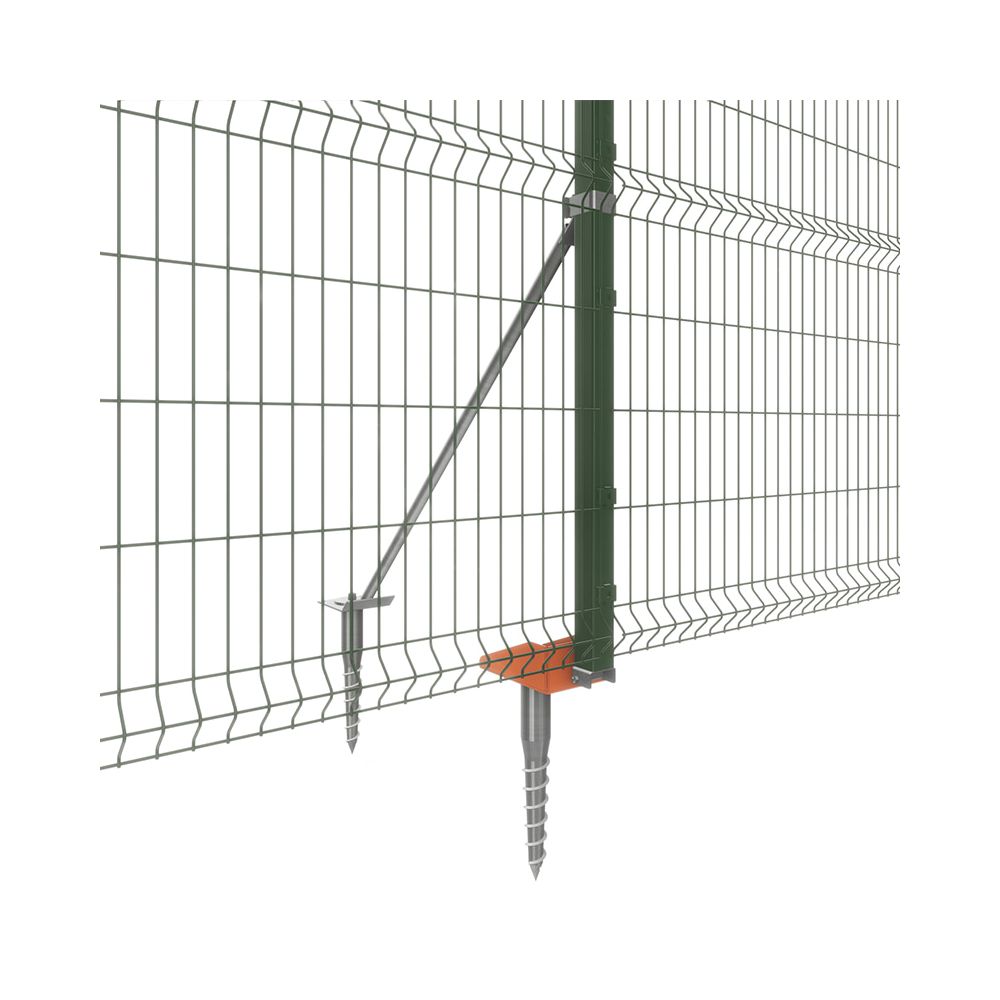

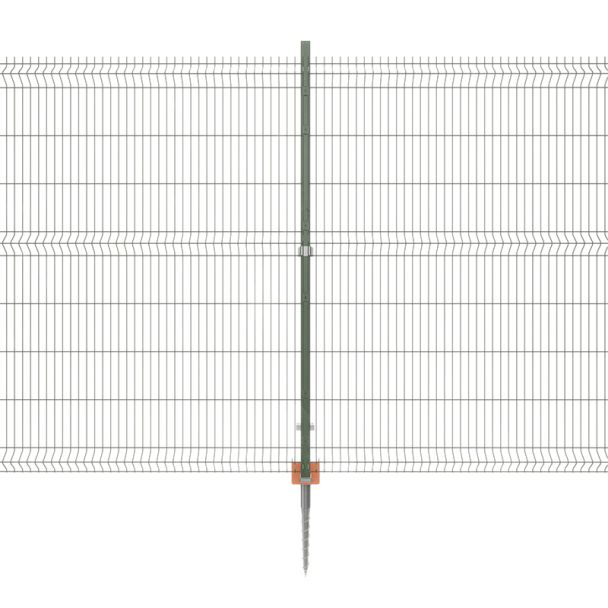

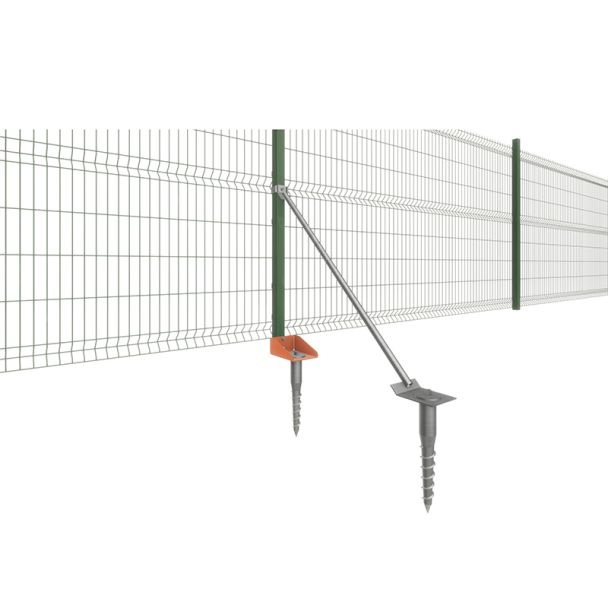

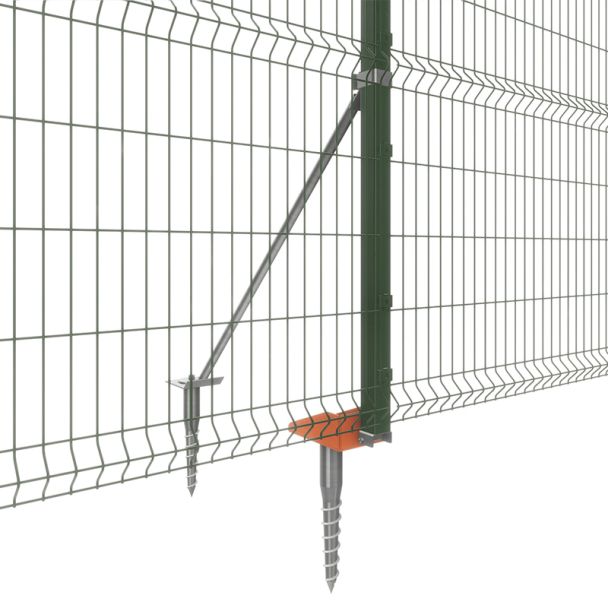

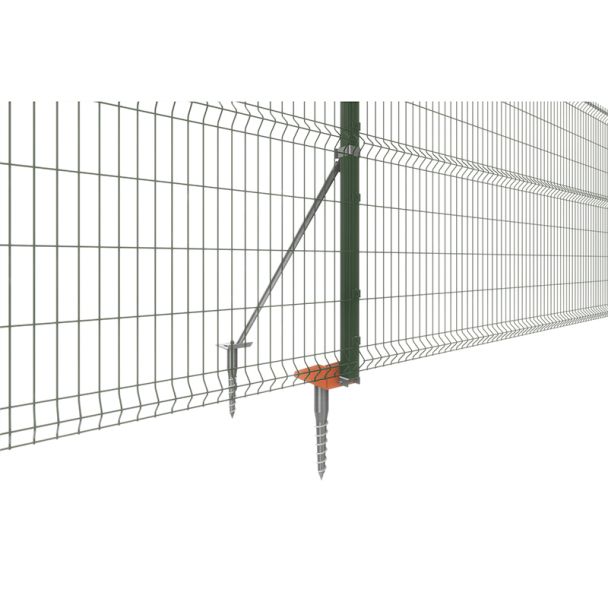

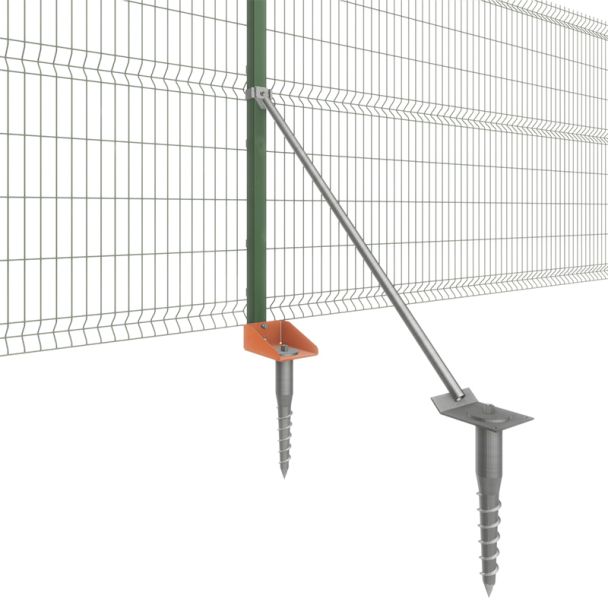

Designed for V-mesh panel fencing this feet locking system holds and locks down V mesh fencing securely using its brace and bracket components. Adaptable for various surface areas such as soil, concrete and asphalt the locking system offers removable and reusable security that is lightweight to transport.

Locking System includes V-Mesh Bracket, Stabiliser Brace, Post U-bracket and a fixing option. Available in 3 fixing options: Soil, Concrete & Asphalt.

As low as €128.84 €158.47
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



Providing compact, safe and secure fence locking this V Mesh Fence Feet Locking System is designed specifically to hold down V-mesh fencing panels in a lightweight, easy-to-use and compact design. Removable and reusable the securing system ensures that V-mesh fence are kept upright regardless of surface area and remain stabilised even under harsh weather conditions e.g. harsh wind currents.

Manufactured for durability and safety the locking system withstands the tough environment of outdoor sites and prevents pedestrians from removing the lock and also provides a zero trip zone on the pedestrians' side. With a low impact on the environment due to its compact nature, preventing animals from nesting the locking system is environmentally friendly.

Product Features:

  • Compact & lightweight fence locking system
  • Easy to install, remove and reuse
  • Anti-trip due to its compact size
  • Wind resistant
  • Stabilises V-mesh fence panels

Kit Includes:

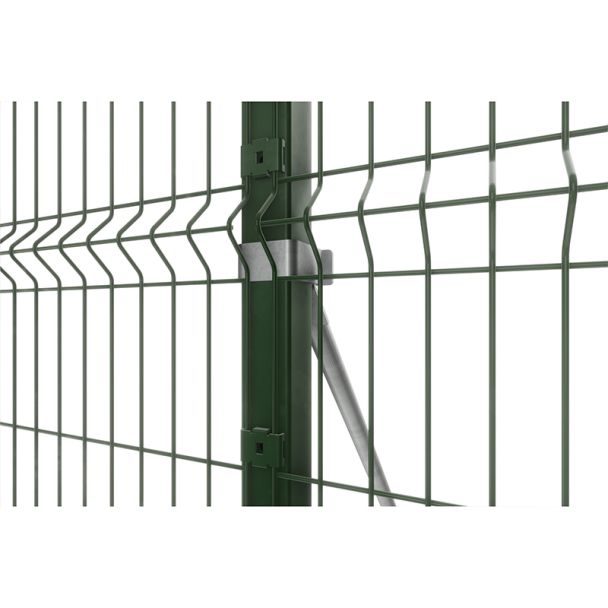

  • V-mesh Bracket
  • Post U-bracket
  • Stabilising Brace
  • Fixing Option - Soil, Concrete & Asphalt

Fixings

Soil Fixing: 2x Flanged Ground Screw - Hot dipped Galvanised Ground Screw

Concrete Fixing: 4x M12 Concrete Screws - High-performance concrete screw for easy installation

Asphalt Fixing: 4x M12 Asphalt Anchors - Metal anchor bolt with internal thread. Combined with chemical anchor resin for high durability

Product Specification

ProductSurface FinishWeightDimensions
V-Mesh BracketZinc Plated4.5KG310mm x 180mm x 210mm
Post U-BracketZinc Plated0.5KG1520mm x 160mm x 120mm
Stabilising BraceZinc Plated5KG1520mm x 160mm x 120mm
Flanged Ground Screw (Soil)Hot Dip Galvanised3KG530mm x 150mm x 68mm
Concrete ScrewZinc Plated0.1KGM12
Asphalt AnchorZinc Plated0.1KGM12

HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.
