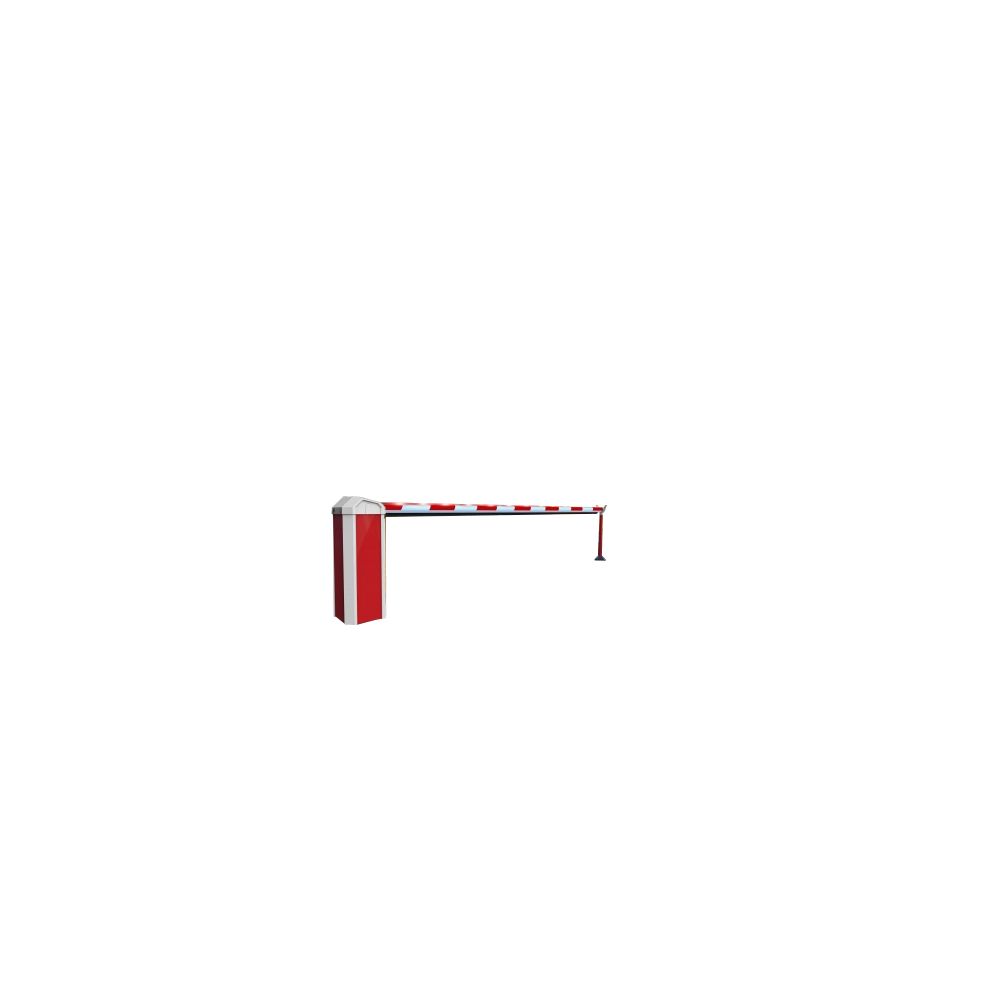

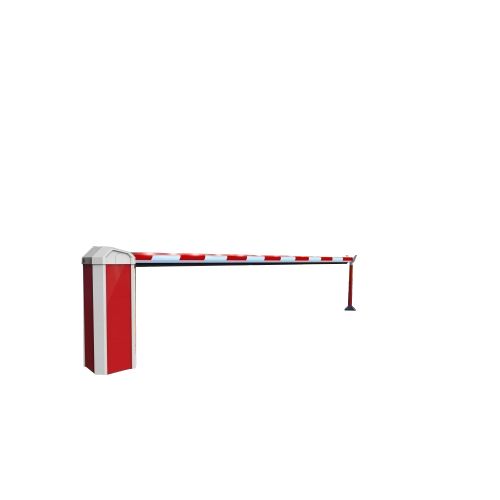

Automatic Raise Arm Barrier - Standard

In stock

SKU PK2444

Automatic barriers or "Boom gates" are typically found at parking facilities, checkpoints and entrances to restricted areas. They are also the usual method for controlling passage through toll booths. In some places, boom gates are installed as a traffic calming measure, preventing through traffic, while allowing authorised vehicles such as emergency services and buses to take advantage of the shorter and more direct route.
Details

Details

Features

  • Removable cast aluminium hood
  • Arm lengths up to 4.0 metres
  • Single phase supply, 3 phase motor
  • Motor & gearbox direct drive
  • Inverter driven
  • Adjustable speed, acceleration and deceleration
  • No springs required or counterweights
  • Pre-wired loop detector bases for single channel safety and entry/exit control
  • Heavy duty roller plunger limit switches
  • Programmable Logic Control - c/w fault diagnostic on screen display
  • Manual override in case of power failure
  • Comes complete with M12 anchor shield bolts
  • 1.5 Amp power supply for additional access control

Added Benefits

  • Corporate colours available on request
  • Low maintenance
  • Ease of installation
  • Heavy duty pillar block bearings

Optional Extras

  • Pogo tip support
  • LED Boom lights
  • Stop/No Entry signs
  • Sensing safety edges

Options For Access Control

  • Keypad
  • Proximity Cards
  • Photo Cells
  • Voice/Video Intercom Access
  • Token Acceptors
  • Remote Control Fobs
  • Key Switch
  • Loop Detectors

HERMEQ stock a wide-range of Parking Barriers, Entrace Barriers, Traffic Management, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
