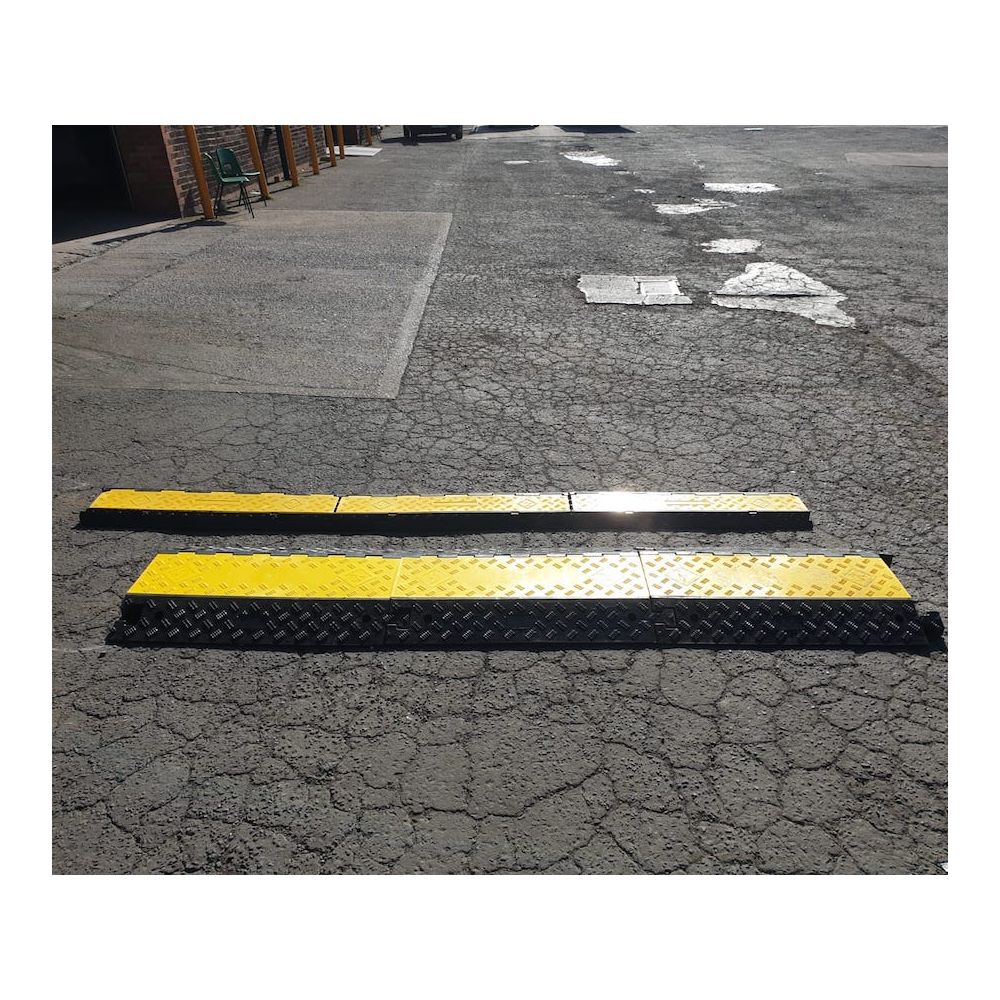

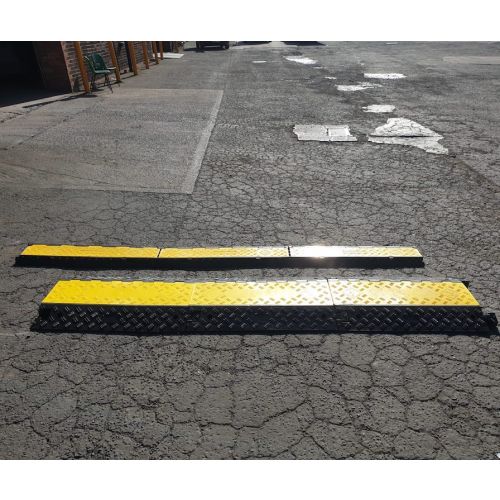

Cable Guard Ramps
Cable Guard Ramps are available with 3 or 5 slots, allowing you to safely run cables through them without presenting a trip hazard or exposing the cables. Cable Guard Ramps are used for running cables both across private roads and pedestrian walkways.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Cable Ramps & Cable Guards allow free and easy movement of both pedestrians and lightweight plant and machinery, whilst providing effective protection for cables on site & at events.
Weight loading is largely dependent on the ground conditions on which you put the cable guard ramps, with the cable ramp protectors being able to take more weight on solid firm ground, and less weight on loose ground. However, we broadly advise that our cable guard ramps are able to take the weight of cars, vans and lorries passing over the cable ramps at low speeds.
3 Channel Cable Guard Ramp Specifications
Length: 990mm
Width: 300mm
Height: 45mm
Weight: 8.5kg
Max Axle Weight: 6 Tonnes
Internal Channel Dimensions: 35mm x 35mm
Male & Female Connection with Yellow PVC Flap
5 Channel Cable Guard Ramp Specifications
Length: 890mm
Width: 590mm
Height: 75mm
Weight: 19kg
Max Axle Weight: 12 Tonnes
Internal Channel Dimensions: 60mm x 40mm
Male & Female Connection with Yellow PVC Flap
The material used for both styles of cable guard ramps is a high-quality rubber base with a PVC lid. The guard ramps come with 4 individual securing points if you need to secure them to a hard-standing area.
The simple male & female connection system allows for the quick installation of these cable ramp protectors & the yellow and black finish makes them highly visible to pedestrians and motorists.
HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
