HERMEQ DACHEcho Barrier Generator Enclosure
Product Highlights
- Generator-specific noise control: Designed to reduce noise from small generators and temporary power units.
- Portable site enclosure: Lightweight aluminium frame supports quick deployment and movement.
- Flexible configuration: Can be used as a screen, partially enclosed or fully enclosed depending on the task.
SKU AB113011

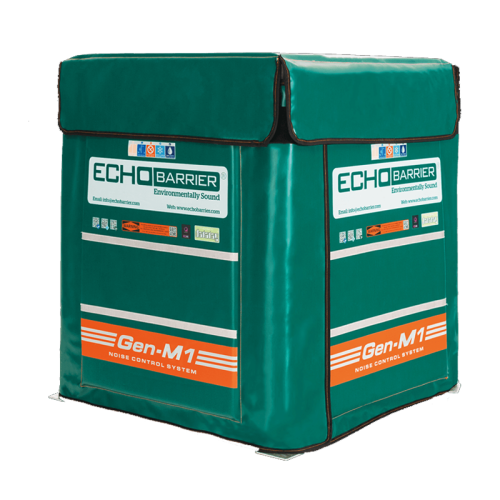

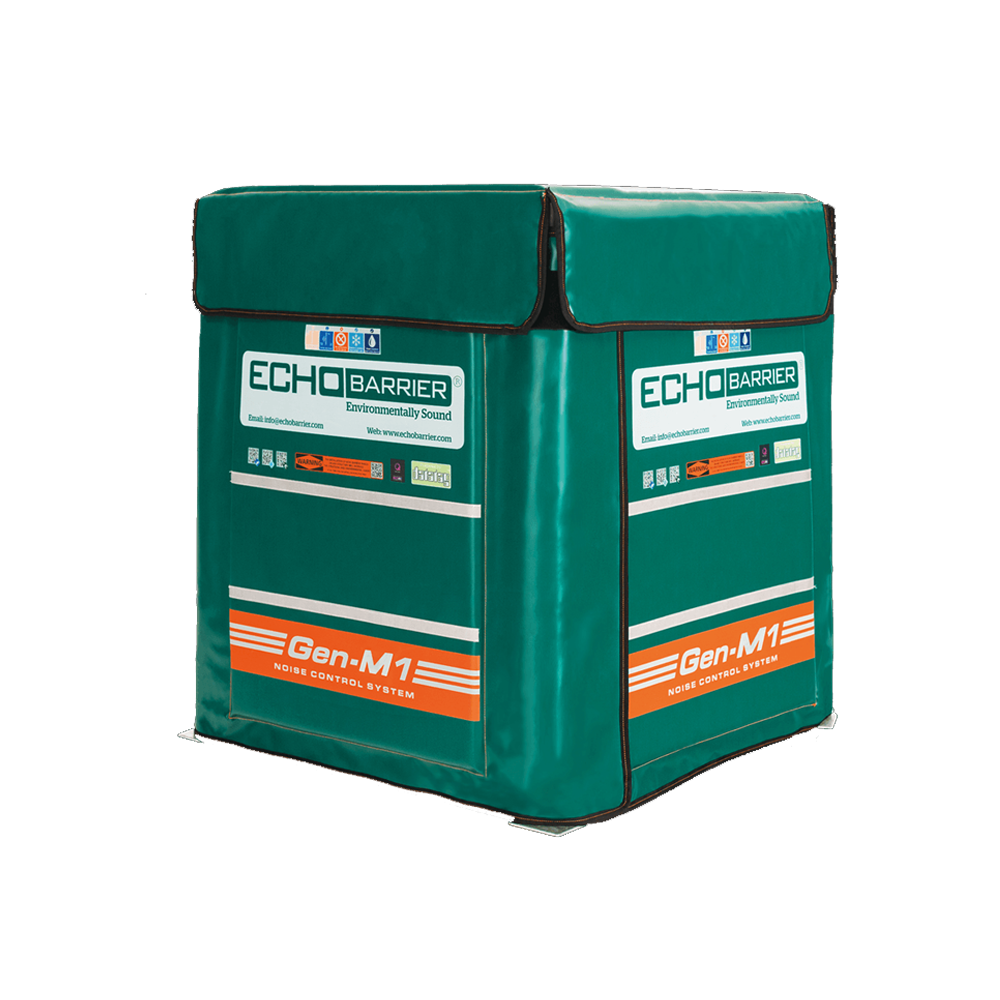

The Echo Barrier Generator Enclosure is a portable generator acoustic enclosure for small generators and site power units. Designed for temporary noise control, it reduces noise by up to 38.5dB and absorbs up to 97% of sound.
The Echo Barrier Generator Enclosure is a generator acoustic enclosure designed for small generators and temporary site power units. It helps contractors control generator noise on construction, utility and maintenance sites where surrounding workers, pedestrians or nearby buildings may be affected by excess sound.
Its lightweight foldable aluminium frame supports fast setup, easy repositioning and straightforward storage between jobs. The enclosure can be configured as a screen, partially enclosed or fully enclosed depending on the site layout and access needed, making it a practical solution for changing work areas.
- Strong acoustic performance: Reduces noise by up to 38.5dB and absorbs up to 97% of sound.
- Built for outdoor use: Fire, water, dust, UV and cold resistance support site durability.
- Compact working footprint: Well suited to smaller generator locations and restricted spaces.
- Improves local site conditions: Helps reduce nuisance noise in public-facing or noise-sensitive areas.
- Suitable for temporary works: A strong fit for construction, roadside, utilities and reactive maintenance projects.
The generator enclosure consists of a lightweight aluminum frame with 2 equal parts and acoustic barriers – 1 roof section and 2 side sections. Put together the frame houses the generators inside, hiding them both visually and sonically.
The acoustic barrier components consist of 3 layers. The outside waterproof PVC layer has the most mass that allows for maximum noise mitigation whilst displaying a splendid visual. The middle layer is a noise-absorbent composite that is both lightweight and highly effective at noise absorption. The third layer is a waterproof breathable membrane that lets in sound to be absorbed by the middle layer composite whilst keeping water out.
These components are also fire, water, dust and weather resistant, operating well even in extreme temperatures from -40° F to 158° F. The UV resistance allows the enclosure to keep its brilliant visual without diminishing performance.
Product Features:
- Reduces noise up to 38.5dB
- Absorbs up to 97% of noise
- Fire, water, dust, UV and cold resistant
- Can be used as a screen, partially or fully enclosed
- Portable, lightweight and durable
- Hides generators and power units both visually and sonically
Note: Always place the barrier with the black mesh side facing the source of the noise.
Product Specifications
| Height | Width | Weight |
| 1250mm | 1050mm |
Barrier: 13KG Frame: 12.5KG Total Weight: 25.5KG |
| Max Noise Reduction (Lab tested) | 38.5dB |
| Max Noise Absorption (Lab tested) | 97% |
| Water Resistant Test Standard | BSEN 60529:1992 IPX6 / IPX9 |
| Fire Resistant Test Standard | BS 7837-1996 |
| Dust Resistant Test Standard | BSEN 60529:1992 |
| Cold Resistant Test Standard | BSEN 60068/2/1:2007 (-40 degrees) |
| UV Resistant Test Standard | 5 Years |
HERMEQ stock a wide-range of Crowd Control Barriers, Traffic Barriers, Rope Barriers & Expandable Barriers conforming to all required safety specifications and regulations. Lightweight, easy to use & made with premium quality materials in the UK!
Need any help? Contact HERMEQ Today.
Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.
What is the Echo Barrier Generator Enclosure used for?
It is used to reduce noise from small generators and temporary power units on construction, utilities and maintenance sites.
Can the enclosure be configured in different ways?
Yes. It can be used as a screen, partially enclosed or fully enclosed depending on the application and access required.
Is the generator enclosure portable?
Yes. It uses a lightweight foldable aluminium frame, making it easier to move, deploy and store between jobs.
Can it be used outdoors in Ireland?
Yes. The enclosure is designed for outdoor site use and is resistant to water, dust, UV exposure, fire and cold conditions.
What type of projects is it suitable for?
It is well suited to construction sites, roadside works, utility projects and other temporary environments where generator noise needs to be controlled.
