Factory Partitioning Panel
Frequently Bought Together

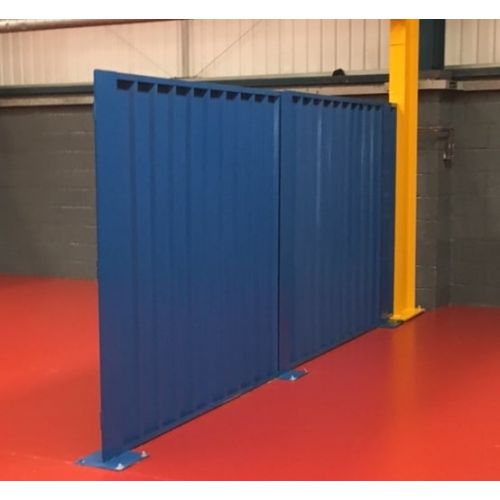

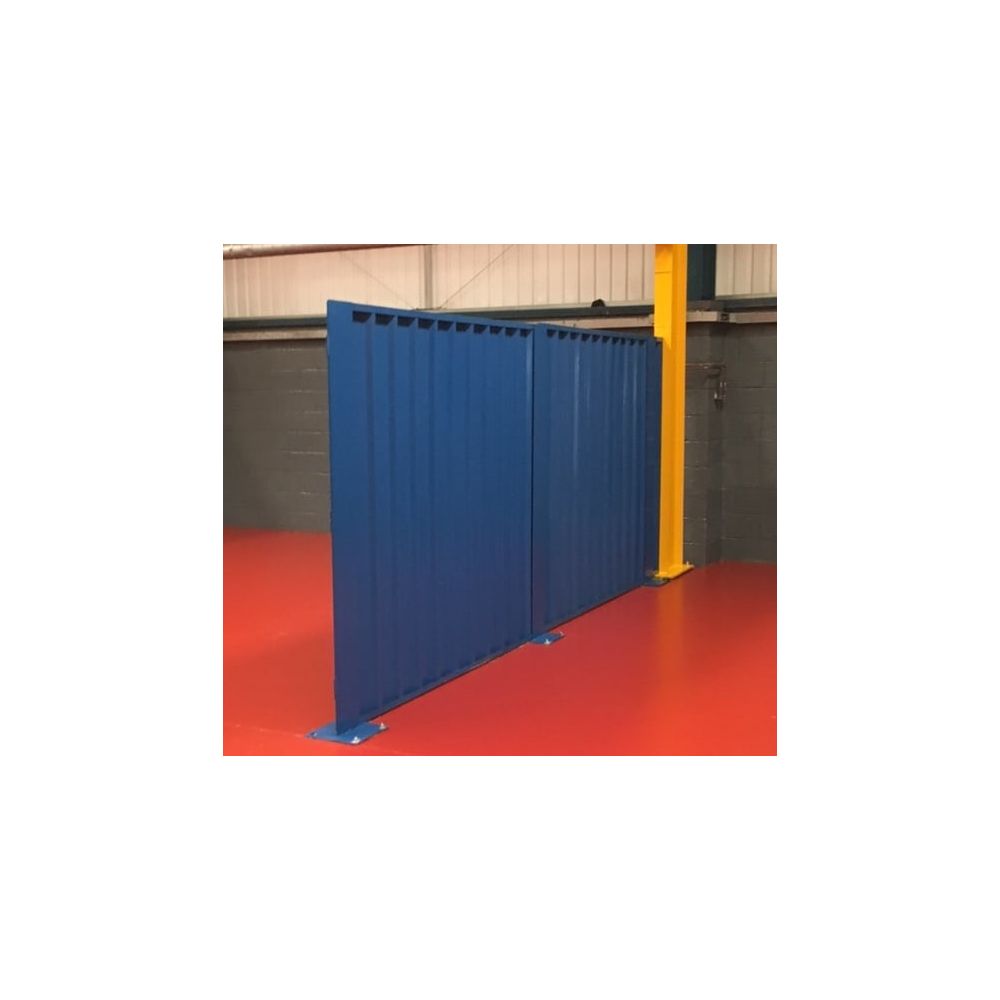

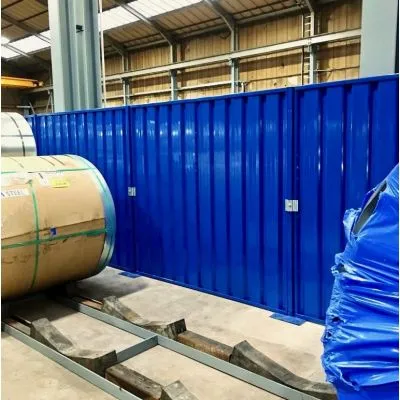

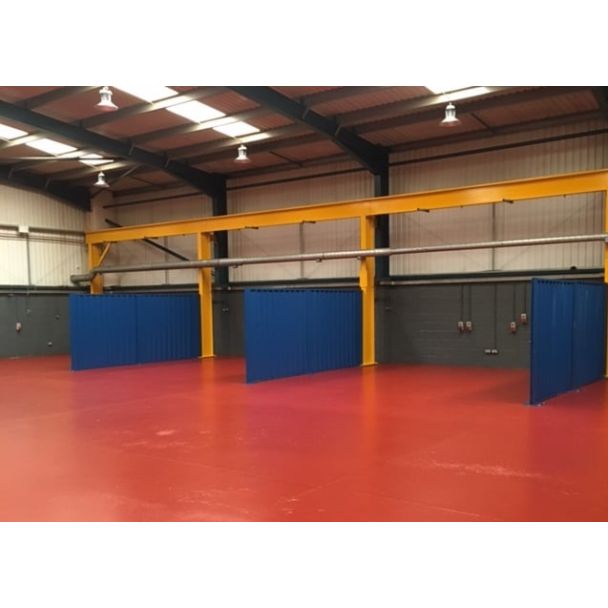

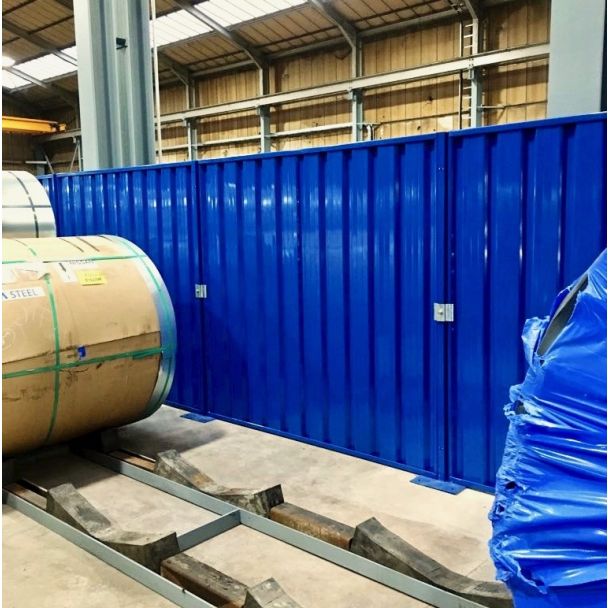

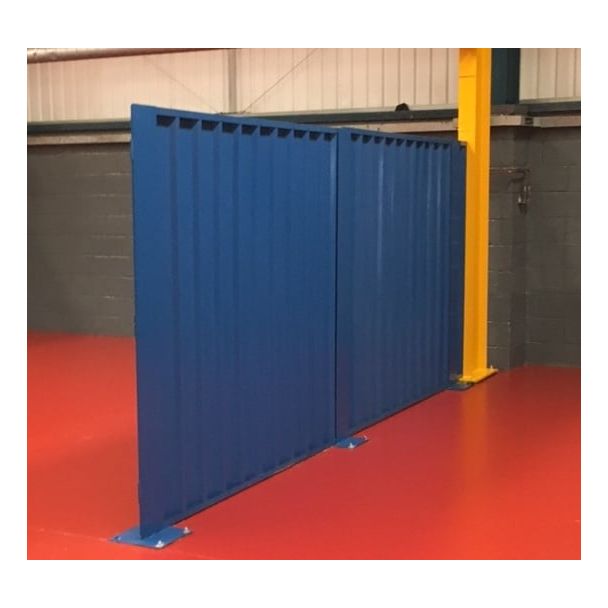

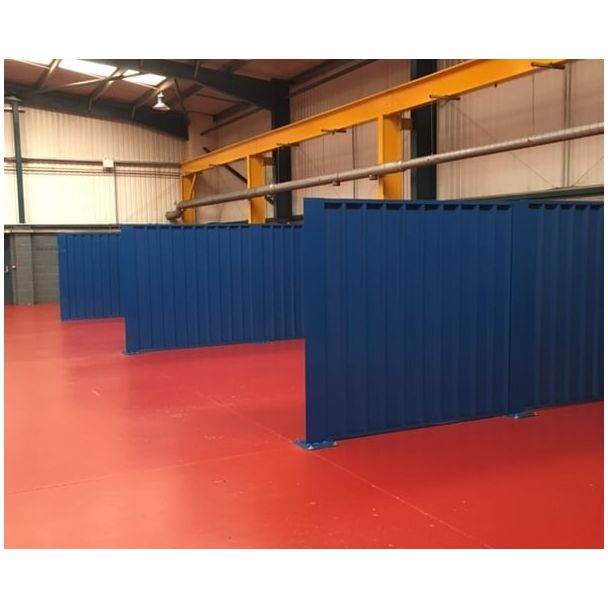

Our heavy duty, solid steel, factory partitioning is perfect for industrial environments. It is an affordable way to divide up your work space and extremely easy to install. In particular it is often used for creating work bays, such as welding bays.

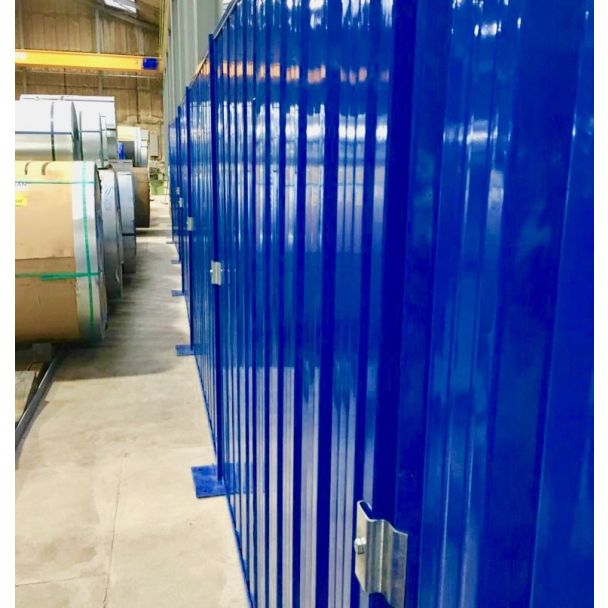

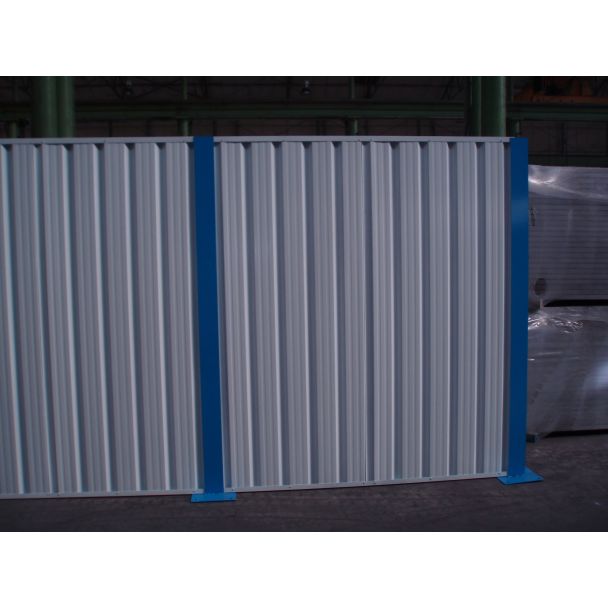

The base plate used is 300 x 300 x 5mm and the post is welded into the middle of this. The panels are then connected to the posts using our Top Hat Brackets & M10 bolts (3 per post).
Please note that panels can be painted or powder coated, but the industry standard and price shown is for only one side to be painted / powder coated. If you require both sides to have the same finish then please get in touch with a member of our team and we can price this up for you.
Need any help? Contact HERMEQ Today.
Width: 2.1 meters
Height: 2.0 meters / 2.4 meters
Weight: 30kg / 40kg
Finish: Galvanised / Painted (one side) / Powder Coated (one side)
0.75mm thick profiled steel cladding - two sheets overlapped in the middle and secured together with two rivets
Tek screws and spot welding secure the steel cladding to the outer frame
Channel 43mm x 35mm x 1.2mm top & bottom (8mm lip on rear to hold cladding in place and prevent rattling)
