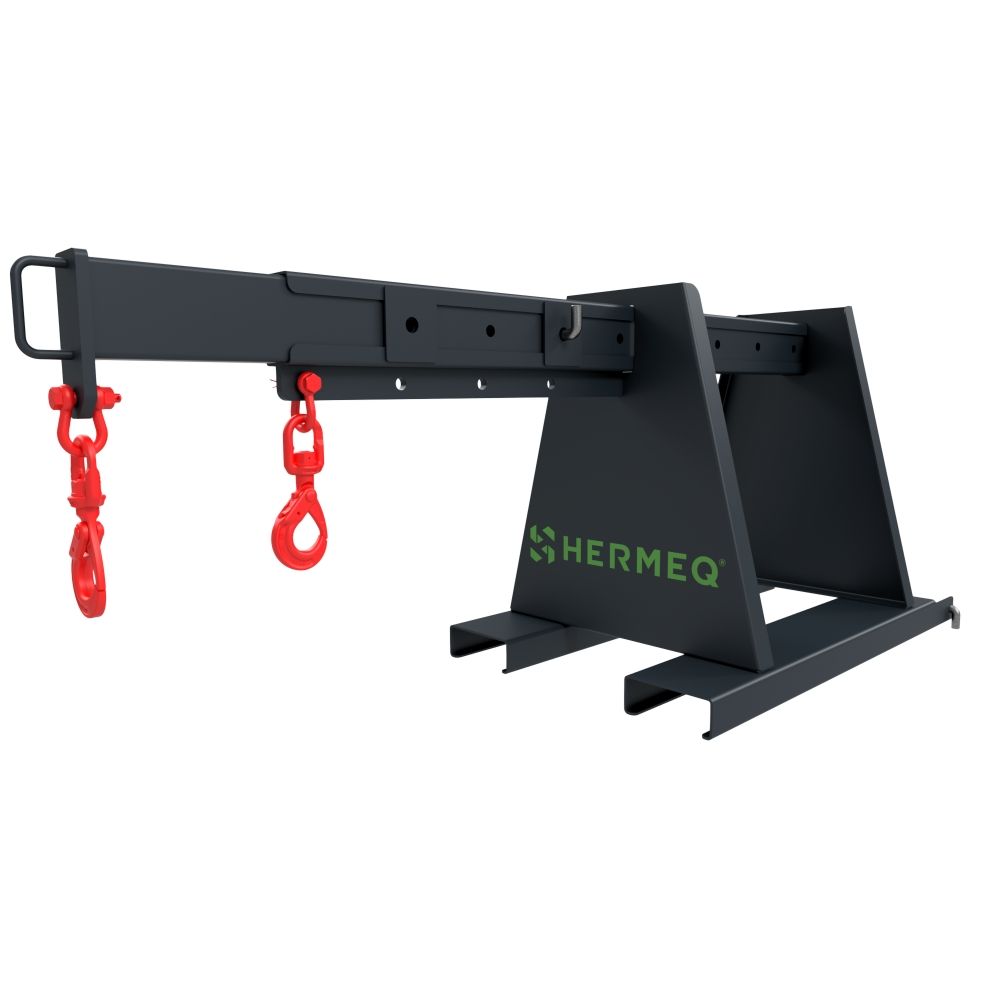

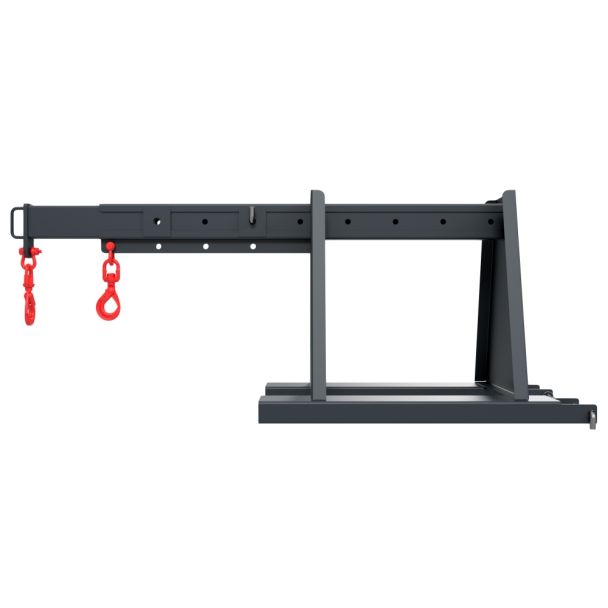

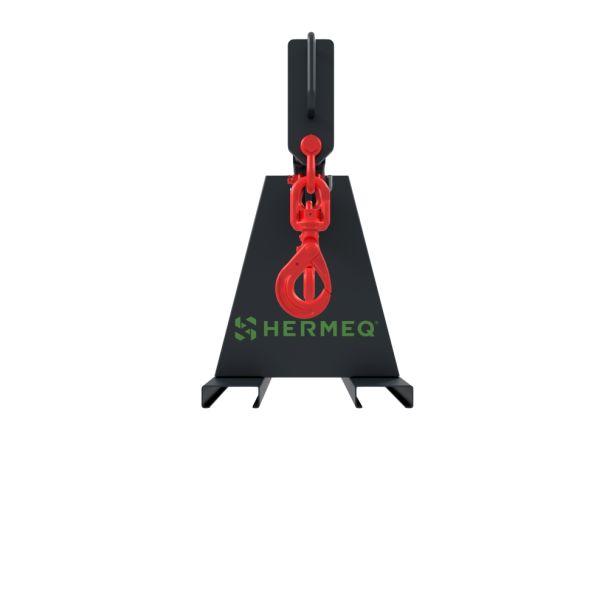

Forklift Extending Jib

SKU
IA1208
Forklift Fork Mounted Jib - extendable with up to 9 different lifting positions. Our models are capable of carrying awkward loads ranging up to 4000kg in weight & are easily mounted onto fork truck forks.
As low as €1,327.20 €1,632.46
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



Like the Fork Mounted Jib, the extending version allows the movement of long and awkward loads from inaccessible locations with up to 9 different lifting positions and with the added benefit of two hooks and shackles so as to ‘cradle’ your load. When reach is less important, but maximum lifting capacity is critical, then you may want to take a look at our Forklift Mounted Jib, which has 4 different lifting centres.

Standard Features

  • Multi hook positioning from 1000-3000 load centres
  • Supplied complete with 2 No swivel hooks and bow shackles
  • Maximum fork section 150 x 50 mm at 435 mm centres
  • Zinc plated heel pins for safe attachment to truck
  • Painted bright orange for safety

When you are looking to purchase forklift attachments then make sure you are comparing like-for-like products. We only supply Ireland manufactured quality forklift attachments. Whilst there are many cheap imitations that are imported from abroad, we think it is important to buy quality, especially with the health and safety risks that come with handling and moving materials using forklift attachments. We also recommend Ireland manufactured goods because we know they will stand the test of time. They are much more durable and longer lasting then their imported competitors, meaning that you save money in the medium to longer term by buying British.

Capacity (kg) at Centres (mm)  Weight (kg)  C of G (mm)
1000 1250 1500 1750 2000 2250 2500 2750 3000
1000 900 800 700 600 500 400 300 200 175 670 - 1010
1500 1250 1100 1000 800 700 600 500 400 175 670 - 1010
2000 1500 1350 1200 1000 800 700 600 400 175 670 - 1010
3000 2000 1750 1500 1250 1000 900 800 700 176 670 - 1010
4000 3000 2750 2400 2000 1500 1250 1000 850 178 670 - 1010



Operation

  1. Position the forks to the correct distance apart to locate into fork pockets.
  2. Remove the heel pins from the attachment.
  3. Drive the forks into the fork pockets.
  4. Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into hole provided.
  5. Position each swivel hook and shackle to the desired lifting point, ensuring that each shackle is adequately tightened.
  6. To extend or retract the extending boom remove the ‘T’ bar locating pin and pull/push on the handle located on the end of the boom until the hole in the extending boom aligns with the hole in the fixed beam and replace the ‘T’ bar pin.
  7. The attachment is now ready for use.

We also supply a range of other forklift attachments designed specially to help you with various types of material handling. These include:

Need any help? Contact HERMEQ Today.

Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.


Capacity (kg) at Centres (mm)  Weight (kg)  C of G (mm)
1000 1250 1500 1750 2000 2250 2500 2750 3000
1000 900 800 700 600 500 400 300 200 175 670-1010
1500 1250 1100 1000 800 700 600 500 400 175 670-1010
2000 1500 1350 1200 1000 800 700 600 400 175 670-1010
3000 2000 1750 1500 1250 1000 900 800 700 176 670-1010
4000 3000 2750 2400 2000 1500 1250 1000 850 178 670-1010
