Ground Reinforcement X Grid

SKU GM215534

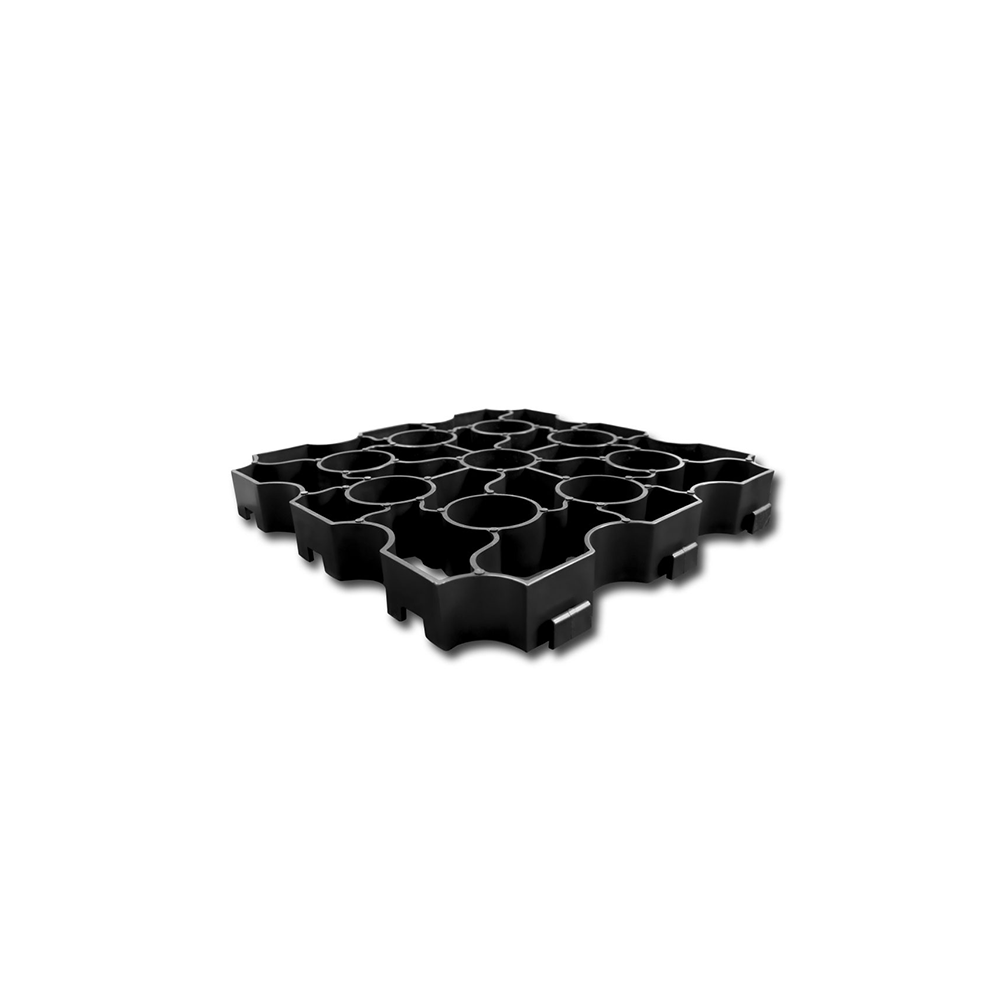

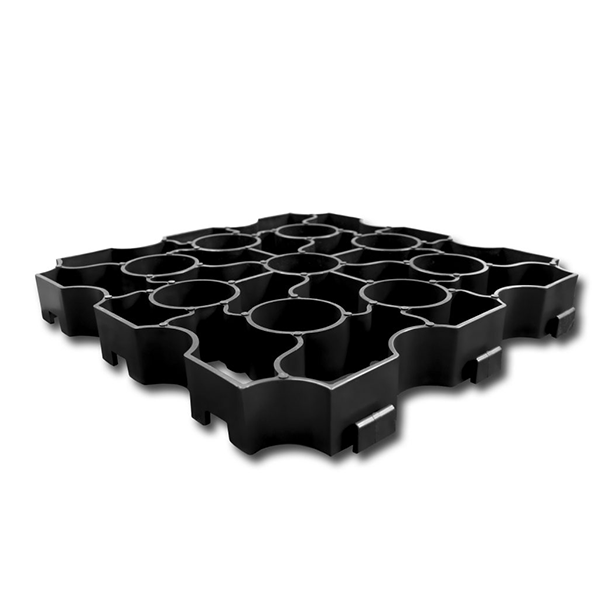

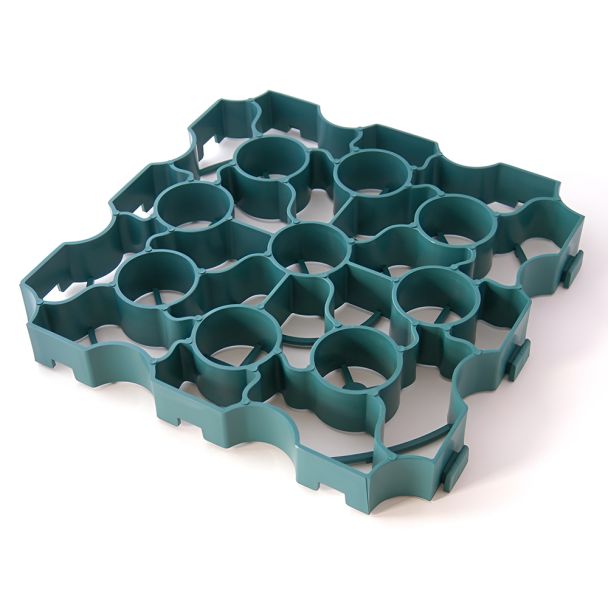

X Grid is a 100% recycled plastic ground reinforcement grid system for stabilising gravel, grass, driveways, paths, car parks, and access routes. These interlocking gravel and grass grids help reduce rutting, potholes, and surface movement while creating a strong, permeable finish.

As low as €2.37 €2.92
In stock

Quickest Available Delivery: Quickest Available Delivery: 14 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

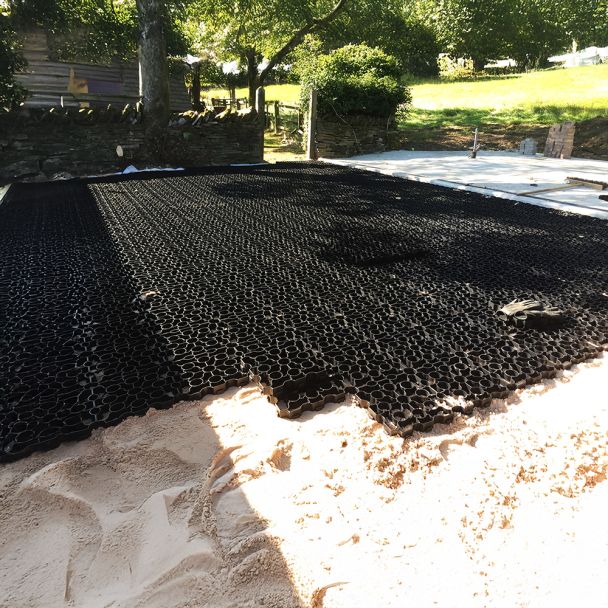

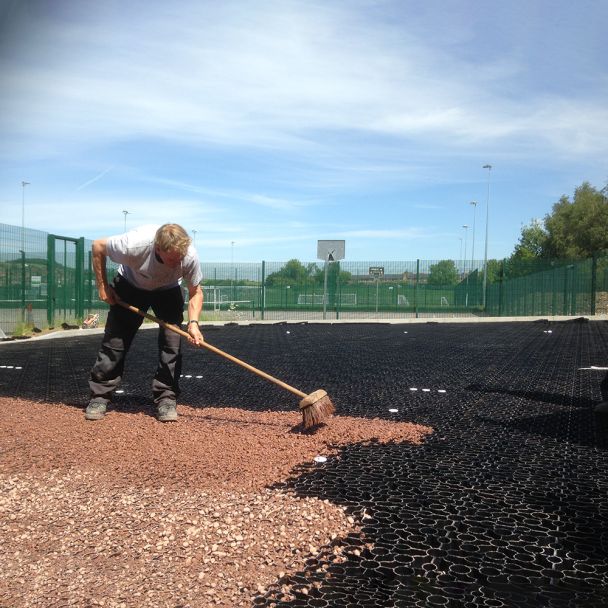

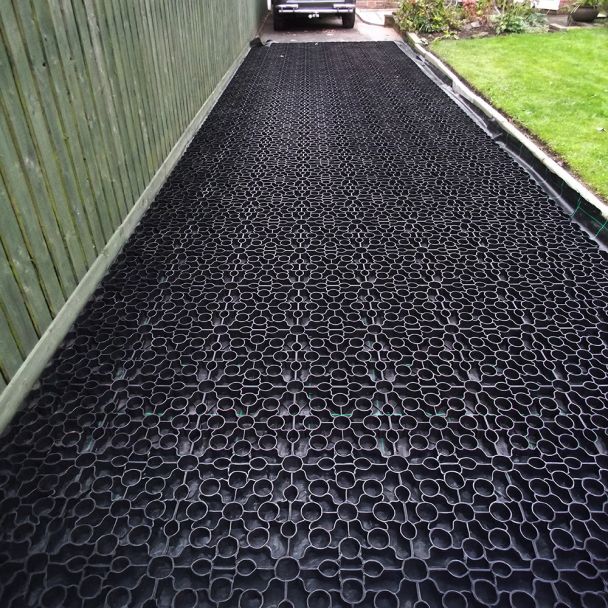

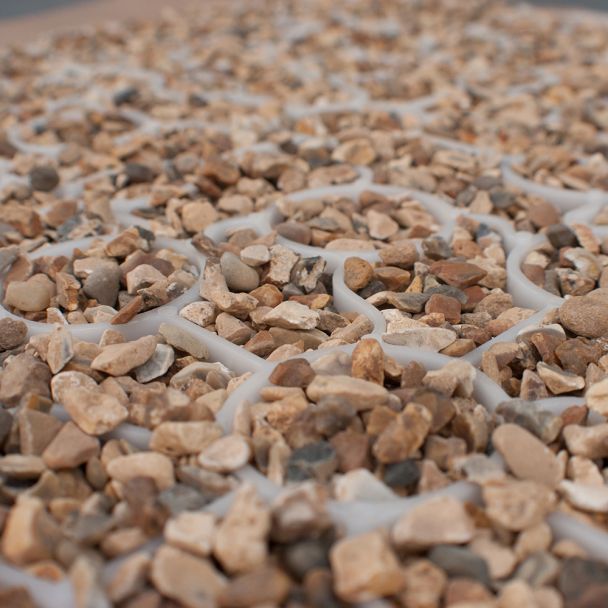

X Grid provides a durable ground reinforcement solution for driveways, gravel areas, grass parking, footpaths, access routes, and car parks across Ireland. The interlocking plastic grid system helps stabilise the surface, retain gravel or grass, and create a permeable load-bearing finish that reduces rutting, potholes, and ground damage.

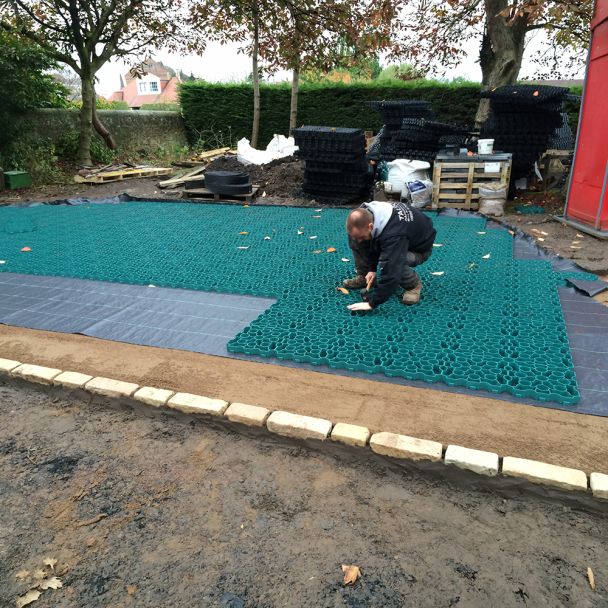

They are lightweight but strong and their interlocking features enabling 100sqm to be installed per person each hour.

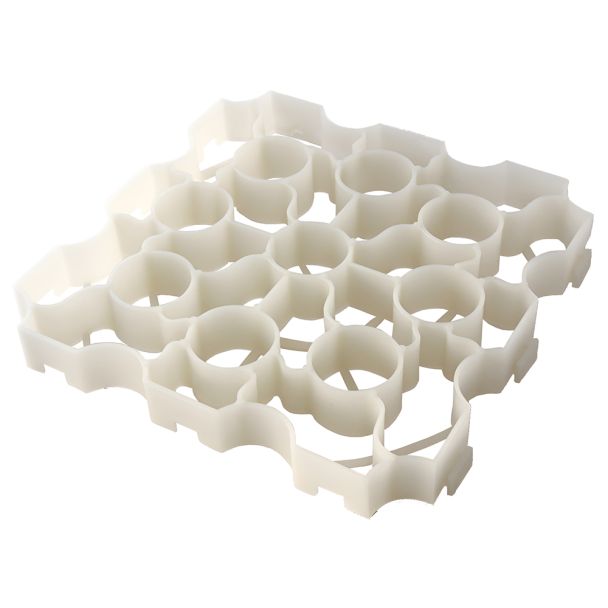

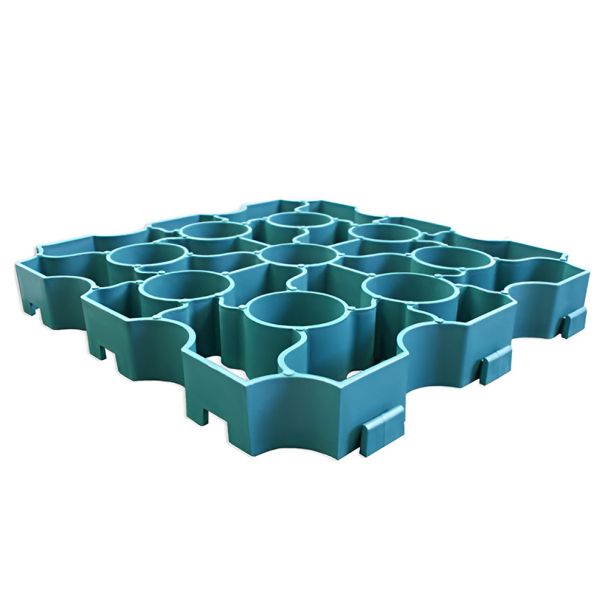

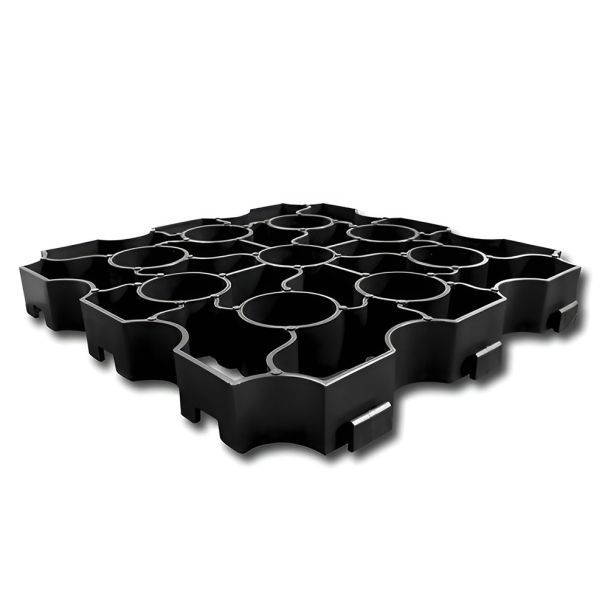

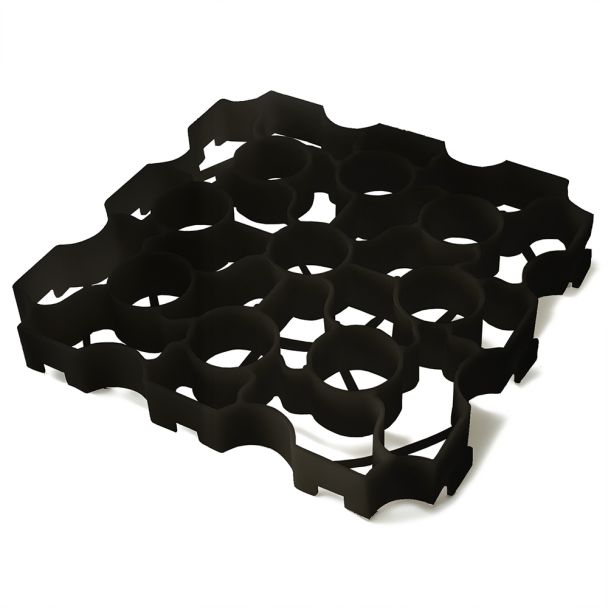

We have three colours available – black, green and natural – and the colour of the grid chosen should typically complement the colour of the surface you are working with.

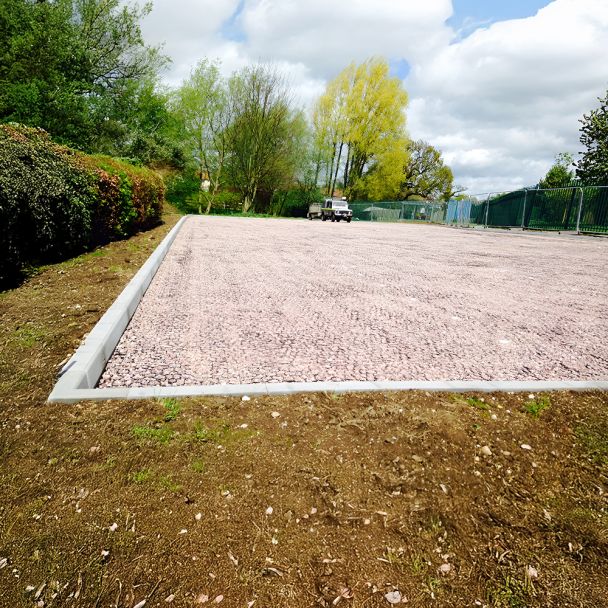

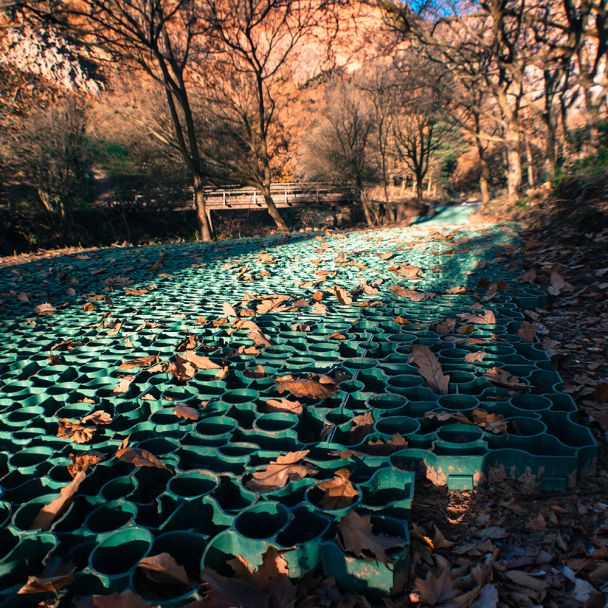

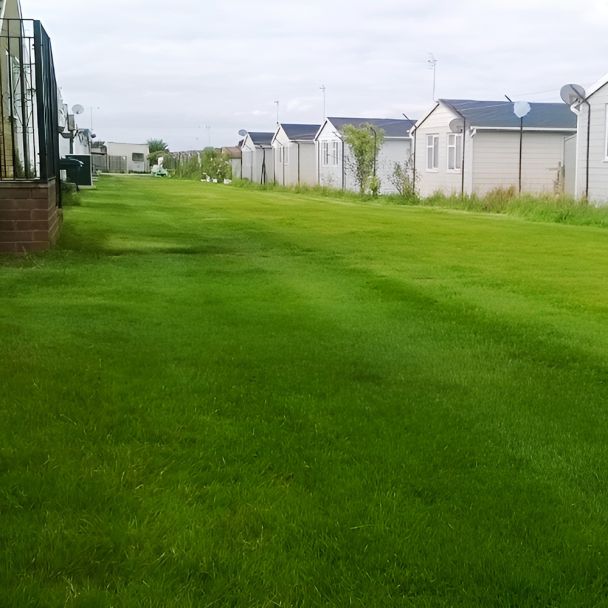

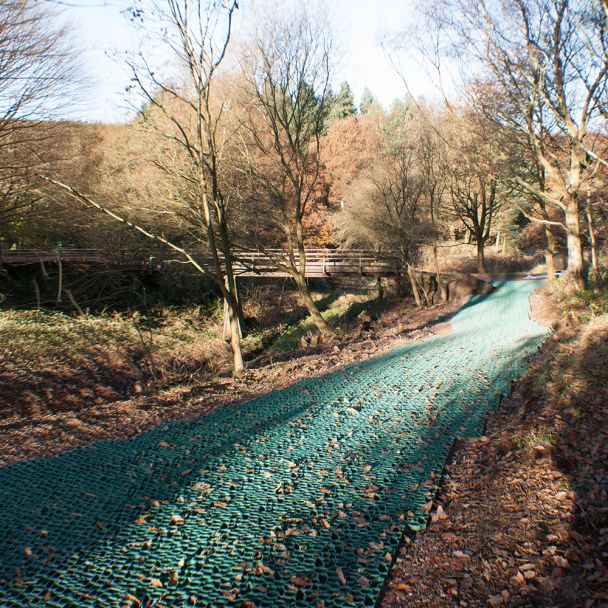

There are many locations and settings our ground grid systems are found – driveways, leisure facilities, landscaping routes and paths, parking areas and access routes providing hard standing and road protection for pedestrians and vehicles.



Specifications

Panel Size: 330mm x 330mm x 40mm

Panels / m2: 9 panels

Panel Weight: 574g

Void Ratio: 93%

Operating Temperature: -50 to 90+ °C

Connection: Integral Slot & Peg

Material: Recycled Polypropylene

Wall Thickness: 3mm

Lifespan: up to 25 years

Max Gradient: 12%

Rate of Installation: 100m/ person per hour

Maximum Vehicle Speed: 15 mph

Made from 100% Recycled Plastic



HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
