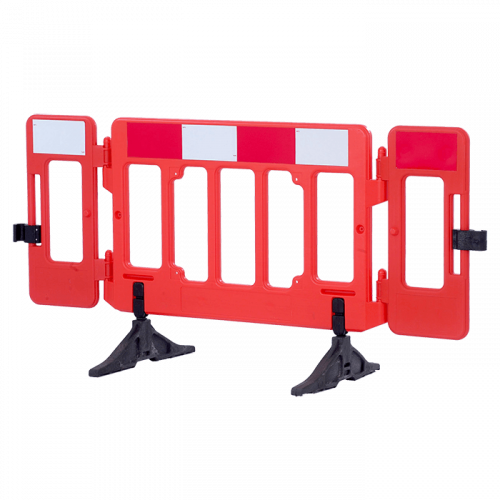

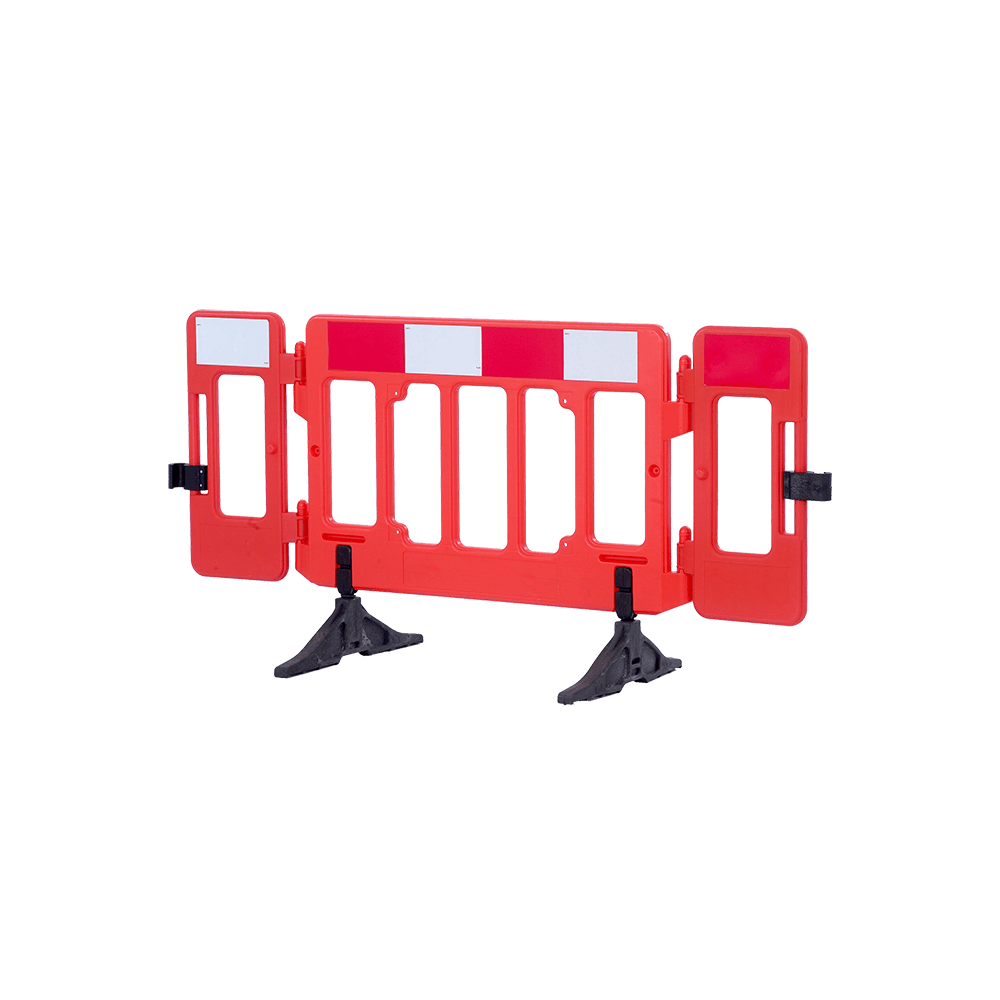

Olympic Chapter 8 Safety Barrier

SKU
PB2338
The Olympic Barrier offers the complete versatile system for utility and construction applications with hinged side wings designed to rotate and self lock at every 90°. This unique feature allows contractors to create configurations to protect temporary pathway excavations and road works of all kinds.
€58.83 €72.36

Quickest Available Delivery: Up To 7 Working Days - Ireland Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

In stock

Product Dimensions

HeightWidthDepthWeight
1020mm2000mm or 1250mm50mm11.40KG

Olympic Chapter 8 Safety Barrier Features

  • Side wings fold - Easy transport where space is limited.
  • Side wings rotate and lock at 90°.
  • Fixing area for the courtesy board.
  • Sliding linking clips to extend barrier.
  • Feet can swivel 360°.
  • Available in various colours.
  • Side wings can be used as door access.

HERMEQ stock a wide-range of Road Barriers, Traffic Management Equipment, Water Filled Barriers & Road Signs conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Standards

  • Conforms to requirements of BSEN8442
  • Reflectivity requirements of BSEN12899-1
  • Chapter 8 - The Traffic Signs Manual
  • Safety at Street Works & Road Works – A Code of Practice.
  • Traffic Signs Regulations & General Directions

Wind Resistance

Class A: 26.3 m/s (58 mph) - Passed (Recommended Ballast 80kg)
Class B: 17.6 m/s (39 mph) - Passed (Recommended Ballast 30kg)
Class C: 8.7 m/s (19 mph) - Passed (Recommended Ballast 0kg)

The Olympic Barrier system was tested under strict conditions at the Full Scale Wind Tunnel at Mira to determine at which wind speeds the barrier can withstand.
