Fork Extensions (Max Fork 100 x 50)

SKU
IA1086

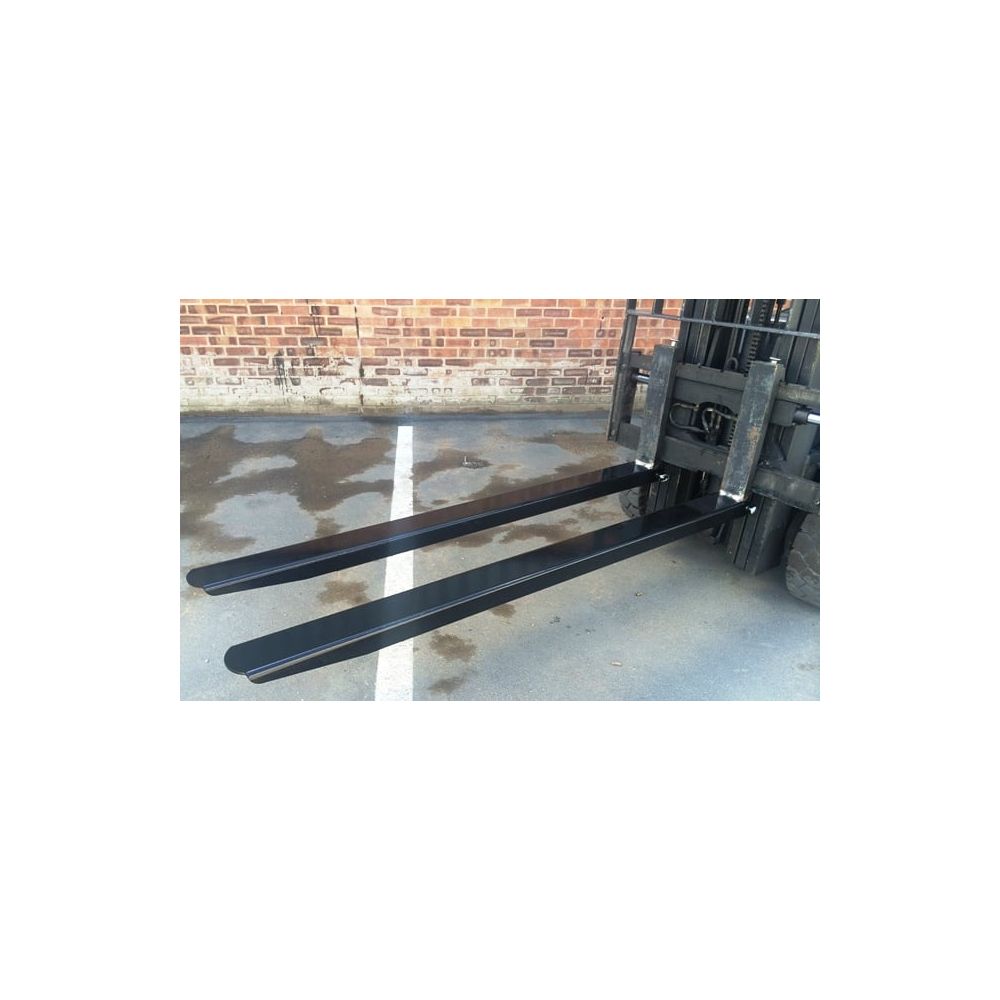

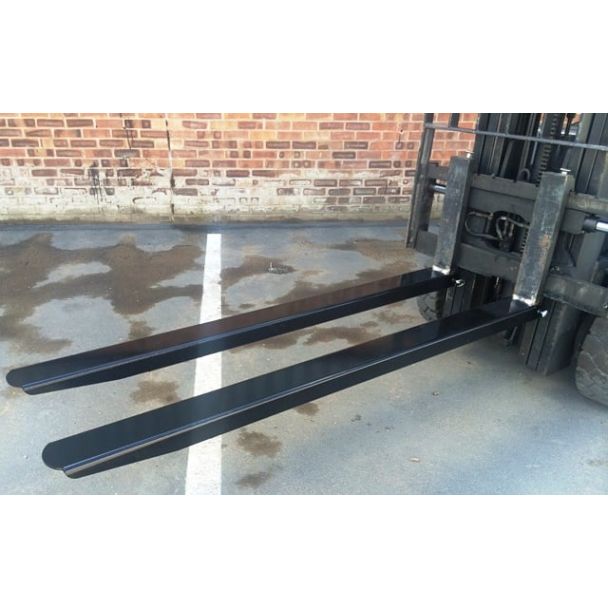

Bolt On Fork Extensions - Max Fork 100mm x 50mm.

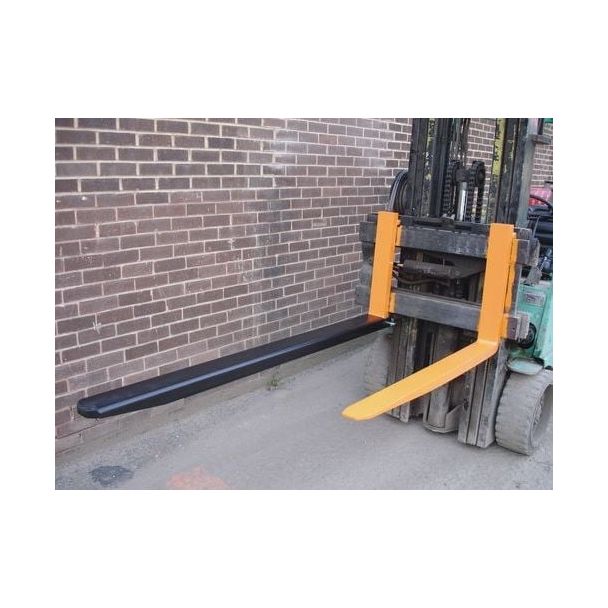

Used to provide effective method to handle long and awkward loads that extends past the tips of the parent fork arm with a maximum overhang of 66%.

Commonly used in construction and lifting industries where smooth underside reducing damage to product.

As low as €292.05 €359.22
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

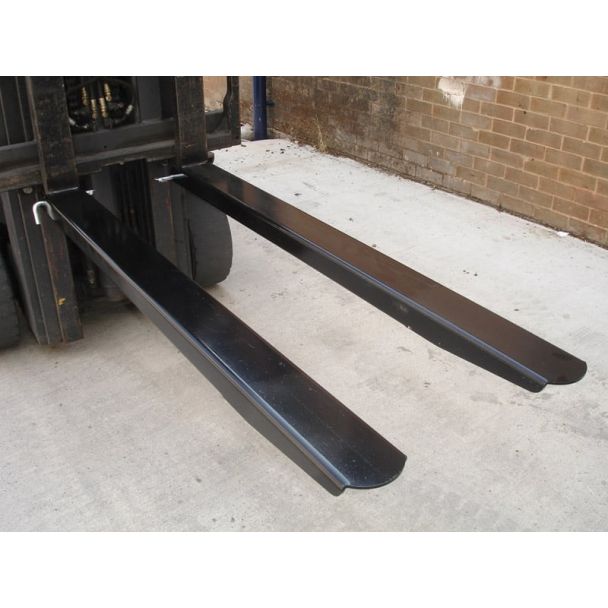

With a tip thickness of 4mm, these easy to fit heel pin forklift extensions are extremely durable and fit for almost all forklift lifting purposes. They are also manufactured here in the Ireland meaning that you can trust that the quality of the forklift extensions that we supply are second to none.

Using Fork Extensions:

  • Position forks to desired distance apart.
  • Remove fork pocket heel pins from extensions

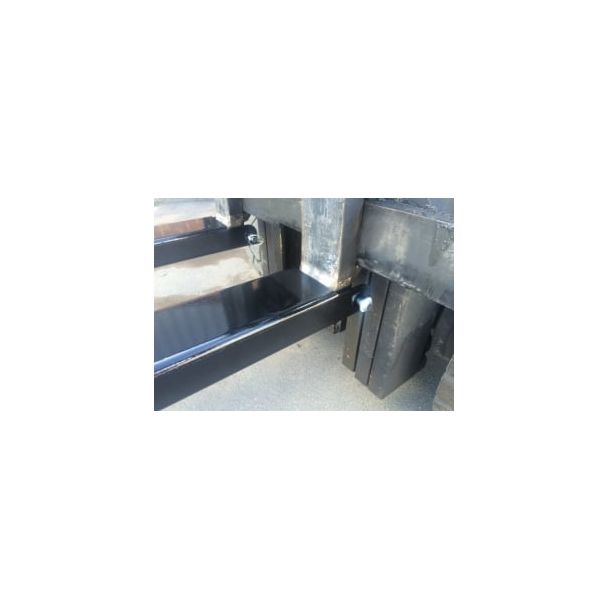

  • Drive forks into the fork extensions.

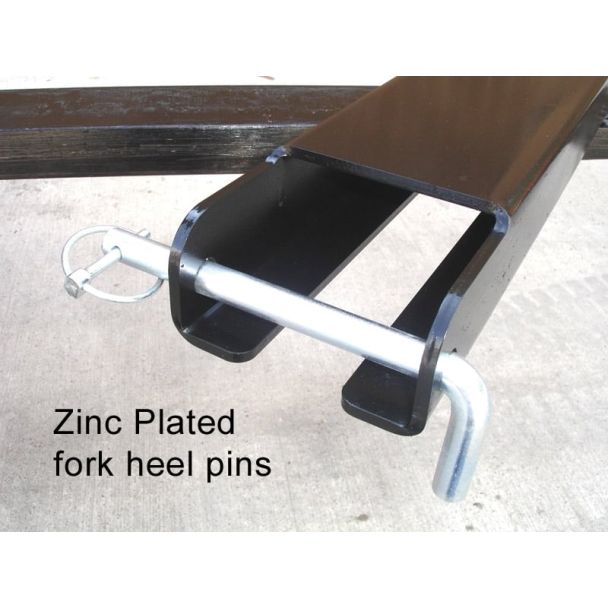

  • Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into the holes provided.

Features:

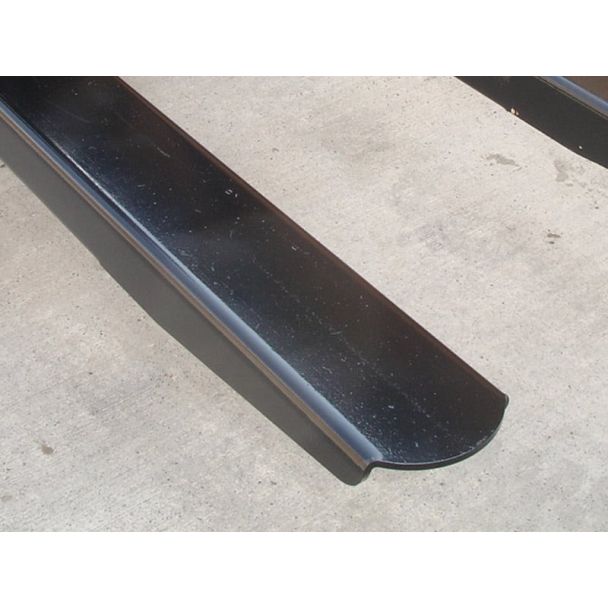

  • Single channel fabrication with fully plated underside
  • Fully pressed profile with rounded corners
  • inc plated heel pins for safe attachment to truck
  • Fully enclosed finish on all 4 sides
  • Black finish

Maintenance:

  • Should be inspected weekly for general condition with attention paid to all weld points and wear & tear distortion of extensions and heel pin attachments.
  • Damage or failure must be reported and rectified immediately prior to re-use.
  • Surface rusting in critical areas should be treated with proprietary inhibitors, primers and paint on regular basis.



HERMEQ stock a wide range of Handling & LiftingVehicle & Container AccessTrench Covers & Road Plates conforming to all required safety specifications and regulations.

Need any help? Contact HERMEQ Today.

Contact our team via phone 01-8063798, email sales@hermeq.ie or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Standard Features

• Tip thickness 6mm for ease of splitting packs
• Fully pressed profile with rounded corners
• Zinc plated heel pins for safe attachment to truck

• Painted black



Length (mm)

Weight (kg)

C of G (mm)

1220

17

610

1372

19

686

1525

21

762

1600

23

800

1650

24

825

1829

26

914

1981

28

990

2134

30

1067

2438

34

1219
