Grade 80 Lifting Chain Sling
Frequently Bought Together
Grade 80 Chain Slings have been manufactured from Grade 80 alloy steel chain and are used for heavy-duty lifting applications in industries such as construction, manufacturing and material handling.
Our Chain Slings conform to BS EN 1677-3 industry standards and are supplied in a red-painted finish.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Grade 80 Chain Slings manufactured from high tensile alloy steel, quenched and tempered are heat treated for enhanced strength and wear resistance and have a temperature range between -40 °C to +400 °C.
Each Chain Sling has been constructed with a clevis fitting which enables direct connection to your chain.

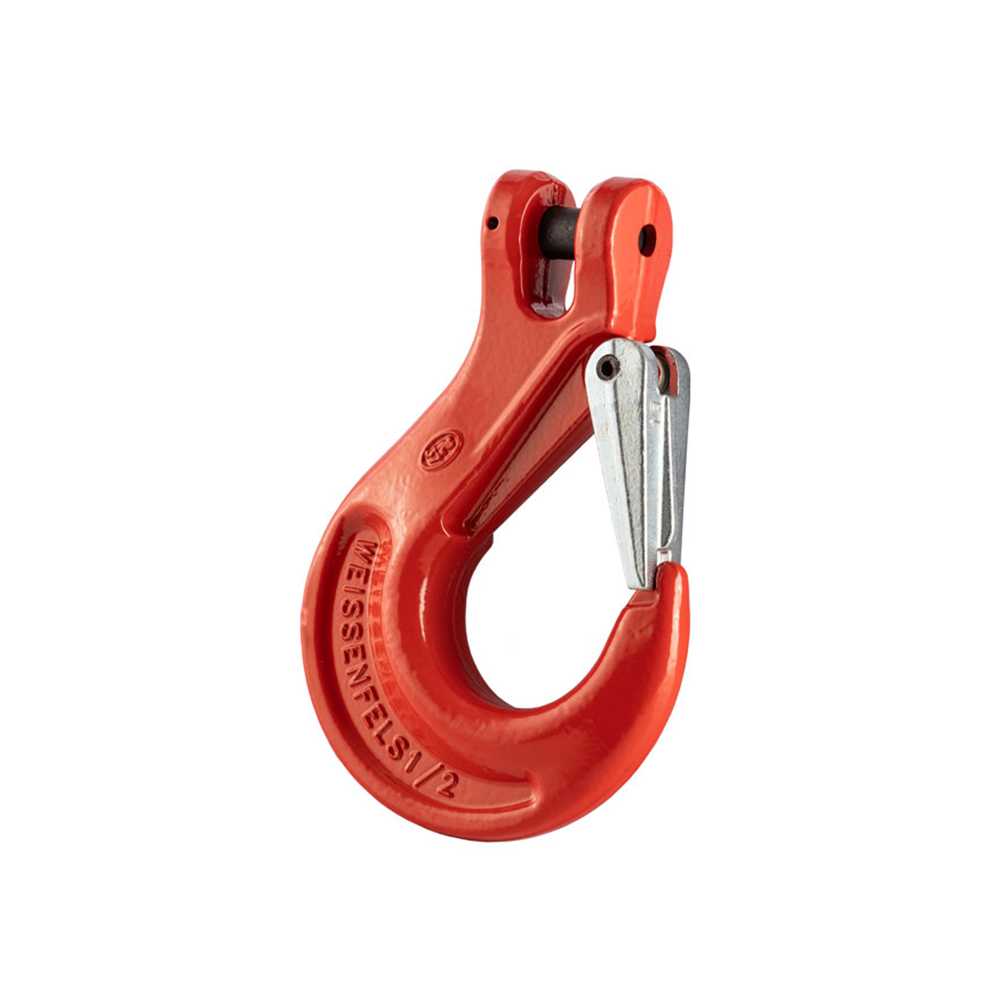

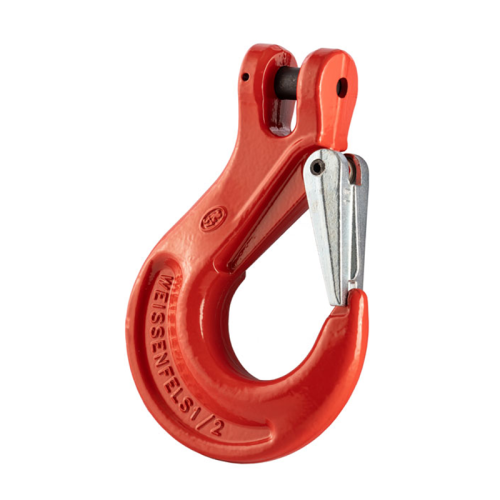

Of our Chain Slings, we have Self Locking Hooks and Sling Hooks (with a catch) with a chain diameter up to 32mm.
|
Chain Diameter |
Sling Type |
Working Load Limit |
|---|---|---|
| 7mm | Single | 1.5t |
| 7mm | Double | 2.12t |
| 7mm | 3 Leg | 3.15t |
| 7mm | 4 Leg | 3.15t |
| 8mm | Single | 2.00t |
| 8mm | Double | 2.80t |
| 8mm | 3 Leg | 4.25t |
| 8mm | 4 Leg | 4.25t |
| 10mm | Single | 3.15t |
| 10mm | Double | 4.25t |
| 10mm | 3 Leg | 6.70t |
| 10mm | 4 Leg | 6.70t |
| 13mm | Single | 5.30t |
| 13mm | Double | 7.50t |
| 13mm | 3 Leg | 11.20t |
| 13mm | 4 Leg | 11.20t |
| 16mm | Single | 8.00t |
| 16mm | Double | 11.20t |
| 16mm | 3 Leg | 17.00t |
| 16mm | 4 Leg | 17.00t |
| 20mm | Single | 12.50t |
| 20mm | Double | 17.00t |
| 20mm | 3 Leg | 26.50t |
| 20mm | 4 Leg | 26.50t |
| 22mm | Single | 15.00t |
| 22mm | Double | 21.20t |
| 22mm | 3 Leg | 31.50t |
| 22mm | 4 Leg | 31.50t |
| 26mm | Single | 21.20t |
| 26mm | Double | 30.00t |
| 26mm | 3 Leg | 45.00t |
| 26mm | 4 Leg | 45.00t |
| 32mm | Single | 31.50t |
| 32mm | Double | 45.00t |
| 32mm | 3 Leg | 67.00t |
| 32mm | 4 Leg | 67.00t |
