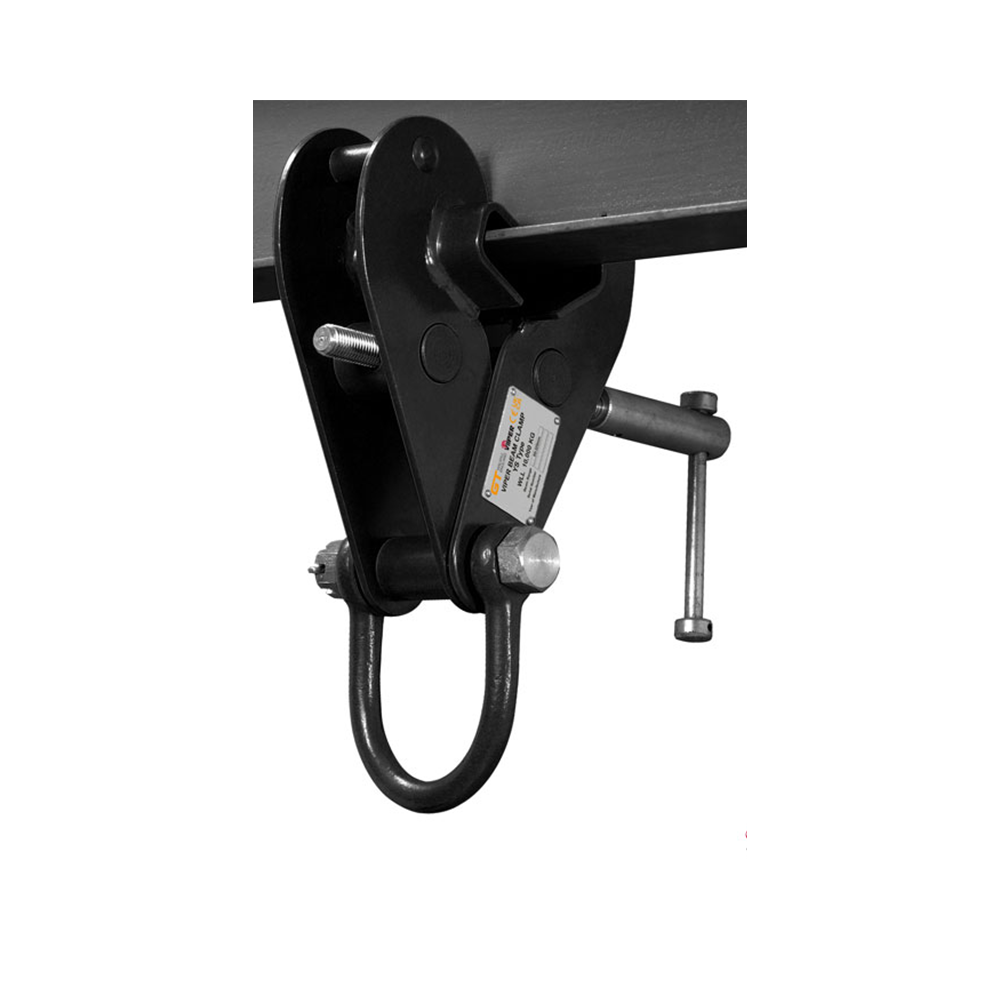

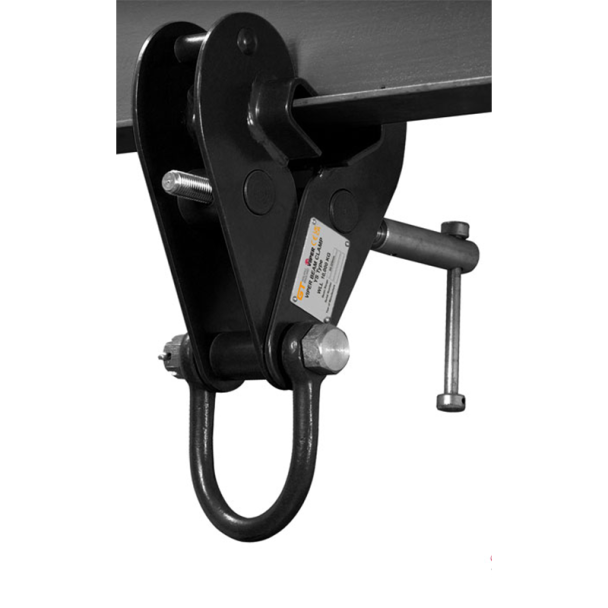

Adjustable Beam Clamp - Heavy Duty
Heavy Duty Adjustable Beam Clamp used in construction and industrial settings to secure or suspend loads from an I-beam or other structural beams. Designed to provide a strong and adjustable connection point for hanging equipment, pipes, conduits or other loads.
We can supply Heavy Duty Beam Clamps to withstand loads up to 20 tonnes.
Compliant to W.L.L. performance requirements of BS EN 13155.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Features:
-
Adjustability: These clamps have an adjustable design, allowing users to customise the size to fit different beam widths or accommodate variations in the structure.
-
Load Capacity: Heavy-duty beam clamps are designed to handle significant loads. The load capacity will vary depending on the specific model and design.
-
Attachment Points: They may have multiple attachment points, such as threaded rods or holes, to secure various types of hanging equipment.
-
Locking Mechanism: Many adjustable beam clamps include a locking mechanism to securely hold the clamp in place once it's adjusted to the desired position.
-
Safety Features: Some clamps may have additional safety features, such as locking pins or secondary locking mechanisms, to prevent accidental release.
-
Corrosion Resistance: Depending on the environment where they will be used, these clamps may have coatings or treatments to resist corrosion and ensure a longer lifespan.
Specifications:
- Heavy duty construction to allow safe and secure grip in the beam
- Matt black finish
- Meets W.L.L. performance requirement of BS EN 13155.
- Minimum breaking load is 4 times the W.L.L.
- Easy and simple mounting for your load.
- Adjustable to fit a range of flange widths and beams.
- Special jaw design applies the load away from the flange edge to reduce flange stress.
