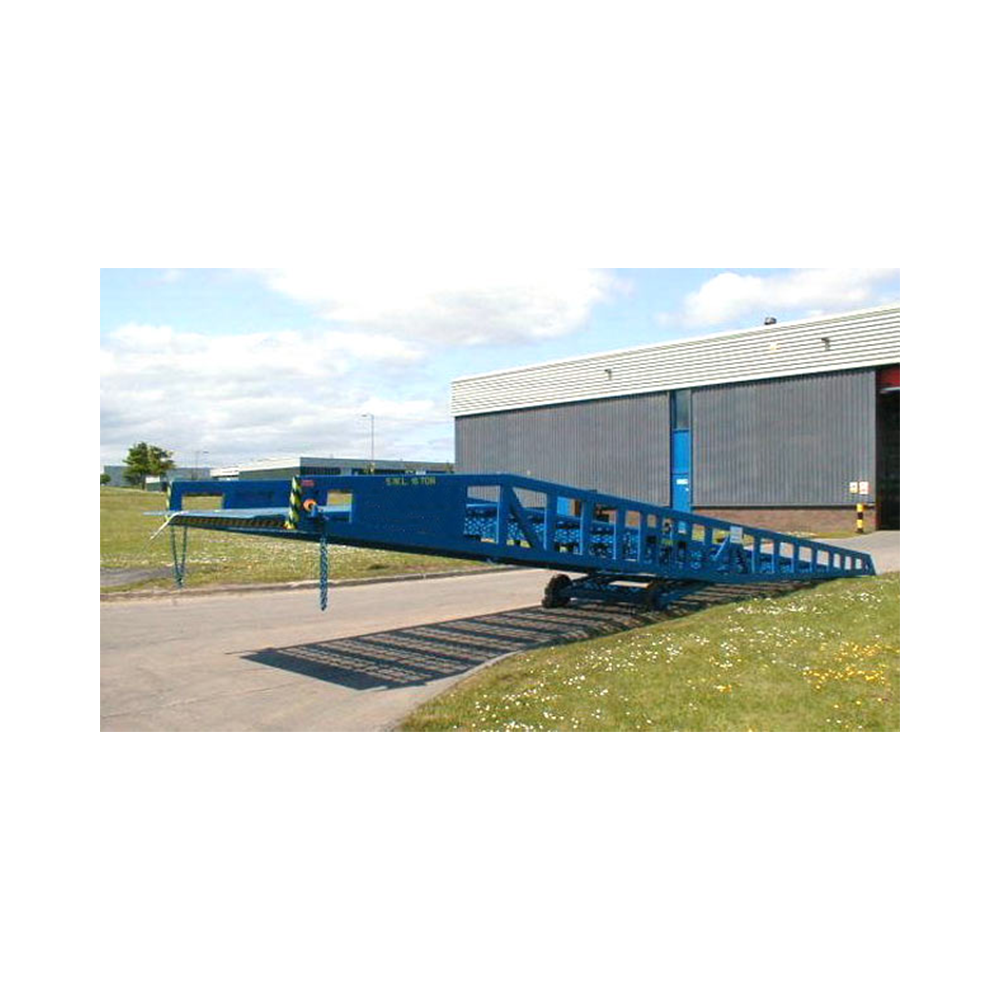

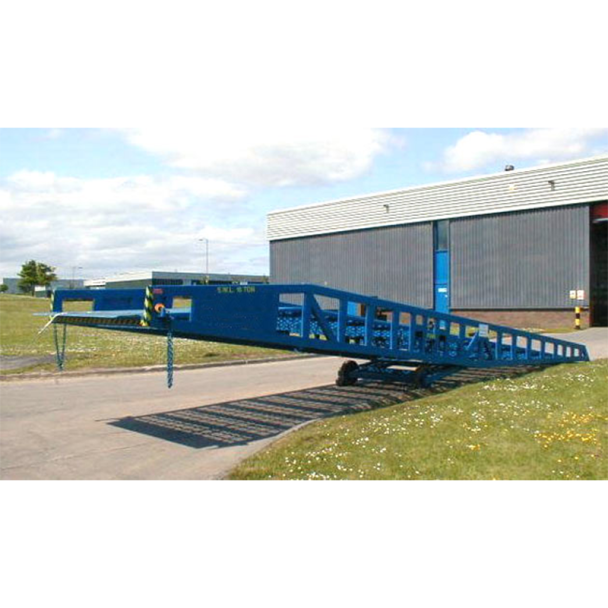

Mobile Forklift Ramp
SKU RC453474
Quickest Available Delivery: 8 Week

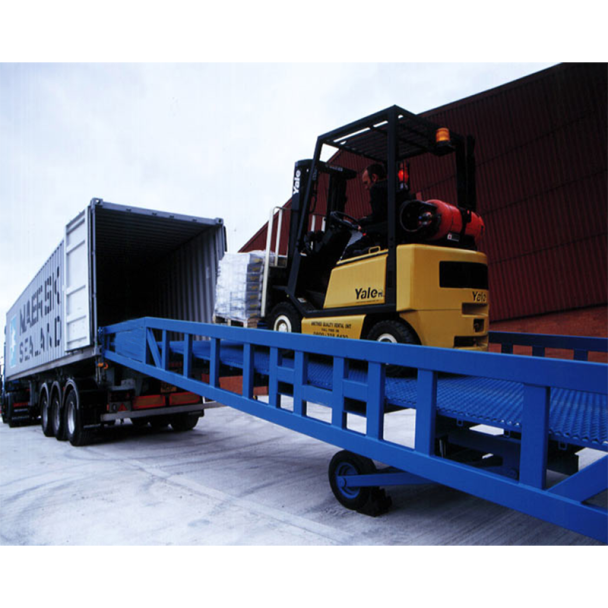

Mobile Yard Ramps have been designed to allow forklift trucks to safely and effectively load containers and trailers when there is no loading bay available to use.
We have three steel constructed Titan Mobile Yard Ramps available which have been designed to easily operate in all types of weather conditions. With their premium quality construction, these Ramps are incredibly durable, long-lasting and require little maintenance on site.
Details
Each Ramp has been safety tested in-house by independent certifying body Lloyds British to easily facilitate the weight of forklift trucks when in use.
Wheel Chocks, Safety Chains and a Forklift Push-Pull Attachment are all included with your Mobile Yard Ramp.
Features:
- Easy manoeuvrability for operator use
- Long-lasting
- Durable coated finish with rust inhibitor
- Manufactured with steel construction
- Finely balanced to assist manoeuvrability
- Hydraulic hand pump for easy lowering and raising of ramp to desired height
- Chains and Anchor Brackets to secure ramp to truck
- Durbar run-on plate to take impact of forklift truck
- Expanded-metal open mesh bed for maximum grip
|

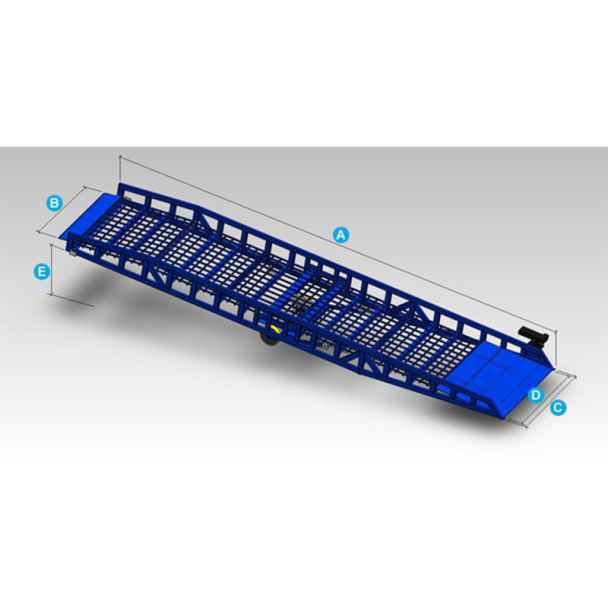

Treads |
Titan 7 |
Titan 10s |
Titan 12 |
|---|---|---|---|
| Length | 10.835m | 10.835m | 11.77m |
| Lip Plate Width | 2.22m | 2.22m | 2.26m |
| External Width | 2.6m | 2.6m | 2.64m |
| Operation Range | 1m to 1.65m | 0.85m to 1.7m | 0.85m to 1.9m |
| Dynamic 2-axle Load Capacity | 7,000kg | 10,000kg | 12,000kg |
| Max Dynamic Single Axle Load Capacity | 6,300kg | 9,000kg | 10,800kg |
| Weight | 2,800kg | 2,880kg | 4,160kg |
| Level Section Length | 1.84m | 1.84m | 2.25m |
| Safety Rave Height | 0.3m | 0.3m | 0.3m |

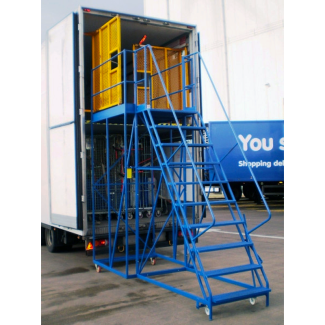

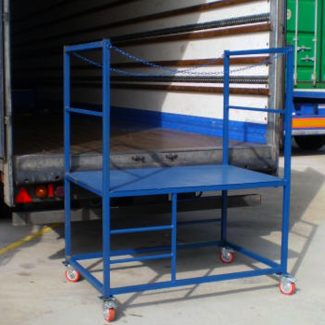

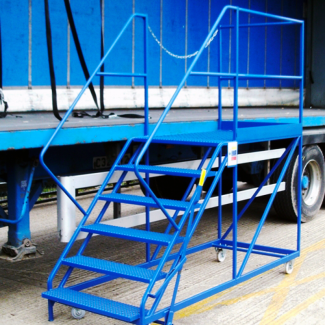

In addition to our Mobile Yard Ramp, we have other Equipment available for safe access to Vehicles & Containers. This includes Lorry Access Mobile Steps, Mobile Access Platforms and Side Access Trailer Steps. In addition to this Access Equipment, we also have a range of Aluminium Ramps available for easy loading access for trucks and vans.
Need help? Contact HERMEQ today.
Contact our team by email at sales@hermeq.ie by phone on 01-8063798 or use our contact form. We would be delighted to help you.
