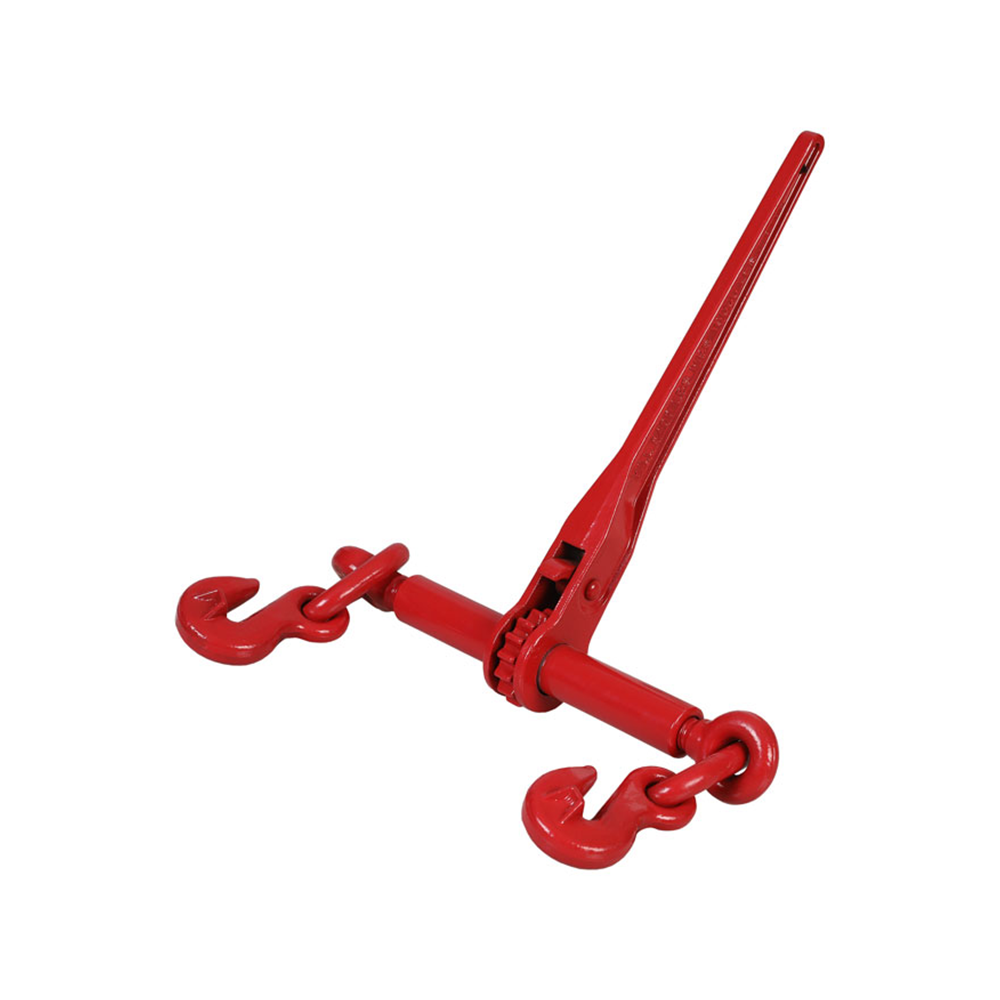

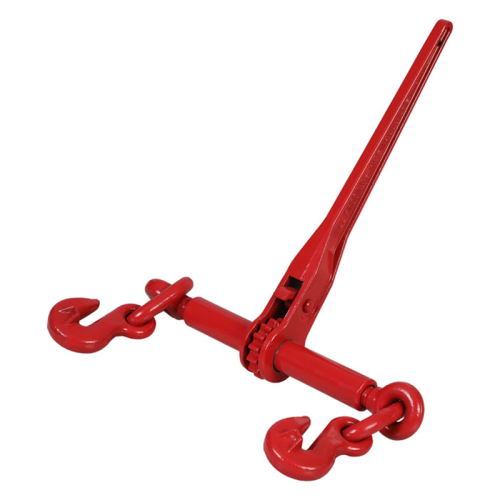

Standard Ratchet Type Loadbinder
Standard Ratchet Type Loadbinder used for securing and tightening chains or other types of tensioning devices used in cargo control.
Commonly used in transportation industry for securing loads of flatbed tailers, trucks or other vehicles – Loadbinders play a crucial role in maintaining the stability and safety of cargo during transit.
Manufactured from drop forged, cast steel, quenched and tempered.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Loadbinders are equipped with a ratcheting mechanism to allow the incremental tightening of the binder to achieve your desired tension on the load.
Comes with a handle for operators to manually crank to tighten the binder and secure the load.
Loadbinders come with hooks on each end to connect the loadbinder to chains or other tensioning devices to create a secure connection.
Each Standard Ratchet Type Loadbinder comes with a red painted finish and is fitted with grab hooks.
Special securing device which prevents threads coming out.
Marked with L.C., manufacturer ID, size and product ID mark.
|
Chain Diameter |
Lashing Capacity |
Minimum Breaking Load |
Weight |
|---|---|---|---|
| 8-10mm | 2,450 kg | 8,575 kg | 4.82 kg |
| 10-13mm | 4,200 kg | 14,700 kg | 5.92 kg |
| 13-16mm | 5,900 kg | 20,650 kg | 7.85kg |
