Tipping Skip - Low Height & Automatic
Frequently Bought Together
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery

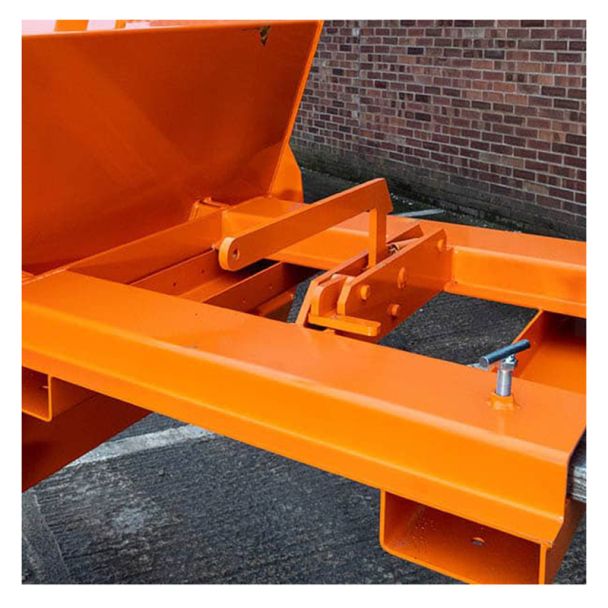

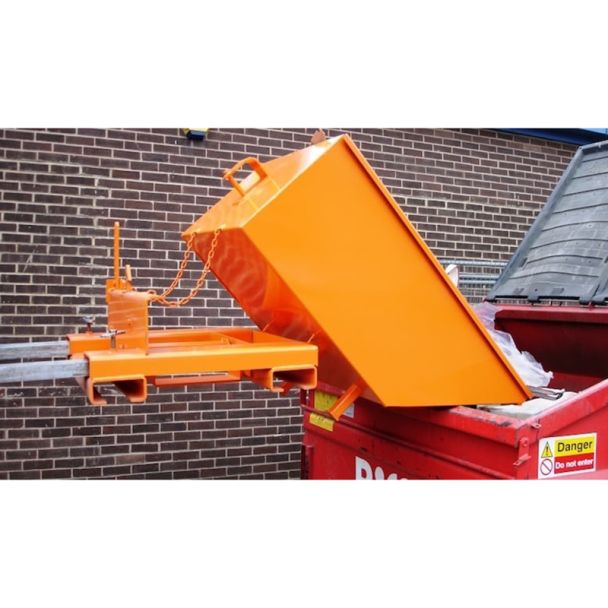

The low level tipping skip / bucket can be easily positioned at the end of a conveyor, dross shoot or a manufacturing line to collect bi-products that are below waist level. IHE's unique automatic tipping mechanism enables the forklift driver to tip the skip at high level without leaving the safety of his seat, with the added benefit of a manual handle for low level tipping.
|
Nominal Capacity (Ltr) |
Capacity (KG) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (KG) |
LLC (mm) |
|
700 |
300 |
1380 |
910 |
700 |
630 |
Fork Length - 530 |
|
1000 |
600 |
1380 |
1300 |
700 |
650 |
Fork Length - 530 |
Standard Features
- Low skip loading height
- Reinforced leading skip edge and body sides
- 4 way fork lift fork pocket entry
- Secondary Locking Mechanism to prevent accidental tipping skip discharge
- Tipper fully seam welded for retention of fluids
- Manual tipping handle override
- Maximum forklift fork section 150 x 60 mm at 683 mm centres
- Zinc plated twist screws for safe attachment to fork truck
