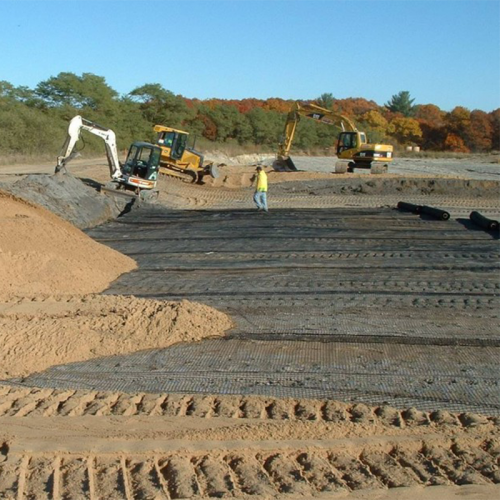

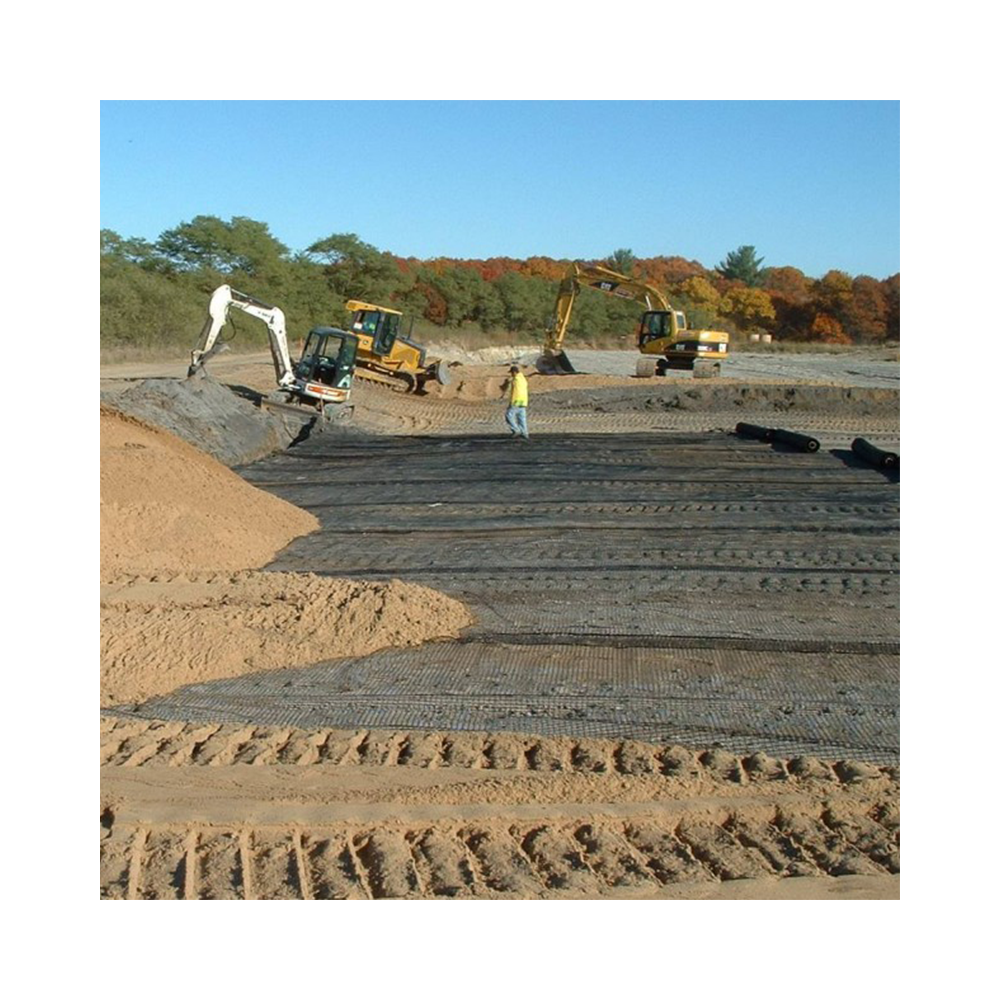

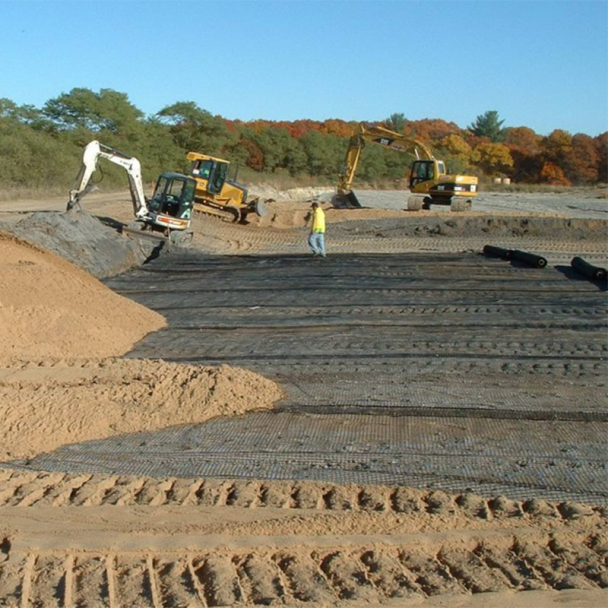

Biaxial Geogrid Reinforcement

SKU
GT247910

Our Reinforcement Geogrids have been designed to provide effective reinforcement to weak sub-grades to absorb stresses caused by heavy traffic over time. Depending on the requirements for the project on your site, these Geogrids will provide reinforcement, ground stabilisation, separation and filtration functions to eliminate the need for multiple products.

Reinforcement Geogrids are typically used on civil engineering or construction projects to offer a reduction of the quantity of fill material required. With the interlocking mechanisms, these Geogrids can effectively control the movement of aggregate materials.

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Features:

  • High strength and low elongation to provide effective ground reinforcement
  • Aperture design enables aggregate materials to interlock and encourages load dispersal
  • Manufactured under ISO Quality Management and Construction Products Regulation

Benefits:

  • Superior reinforcement
  • High tensile strength
  • Excellent separation
  • Excellent soil and aggregate confinement



Specifications:



20/20S 30/30S 40/40S 30/30L
Tensile Strength (kN/m) MD,CD 20,20 30,30 40,40 30,30
Tensile Strength at 2% Strain (%) 7,8 10,10 14,14 10,9
Tensile Strength at 5% Strain (%) 15,17 21,23 25,29 21,20
Elongation at Max Load (%) 12,9 12,9 10,9 10,9
Grid Opening Size (mm) 40 x 40 40 x 40 40 x 40 60 x 60
Roll Size Wm x Lm 3.95 x 50 3.95 x 50 3.95 x 50 3.95 x 50



HERMEQ stock a wide range of Geotechnics, Geotextiles, Geomembranes & Root Barriers conforming to all required safety specifications and regulations.
