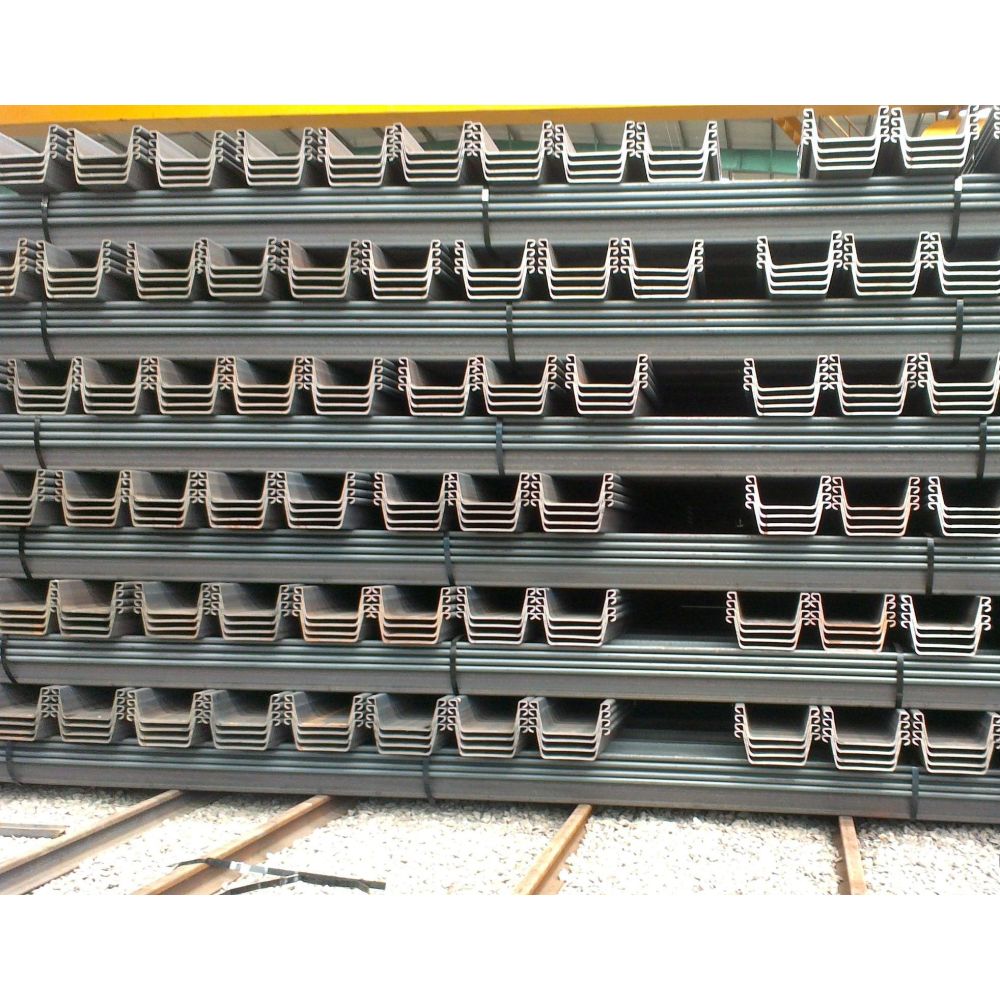

U Piles - ThyssenKrupp

Name: U Piles - ThyssenKrupp
SKU: UP1794
Price: 184.5 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

UP1794

U-shaped steel sheet piles have been some of the most used & trusted piles in the world for year. HERMEQ offer a range of different profiles to suit your demands and these u-shaped steel piles can be supplied in various lengths. Also known as larssen interlocking sheet piles, the segments with indented profiles (troughs) interlock to form a wall with alternative indents and outdents. The troughs help to strengthen the sheet piles & increase their resistance to bending.

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

U Section hot rolles steel sheet pile sections, incorporating the well-known and efficient Larssen interlocks, are used in the foundation of pits, coastline strengthening, bridge construction, piers, tide control, flood protection, agriculture irrigation, water reservoirs and other work requiring extremely strong support in a narrow geometry.

Installing

Each segment is flipped 180° versus the preceding segment. The segments lock together using a variety of interconnections.
The fully assembled structure is formed in a linear, circular, or other shape.
To reduce the filtering space, mixed sealant is injected. Additionally, it may be combined with the use of dowels, metal beams and pipes.

Piling from stock in grades S270GP up to S390GP are cut to length and supplied with a standard slinging hole or if required, special slinging holes to suit installation. Associated products of walings, tie-rods, H-beams, rebar and tubes and heavy-wall pipes are also available and this extensive combination of products provides customers with a single point of contact in the industry for all of their project needs.

Profile	B (mm)	H (mm)	T (mm)	S (mm)	Weight (kg/m)	Weight (kg/m2)	Moment of Inertiea (cm4/m)	Elastic Section Modulus (cm2/m)	Plastic Setion Modulus (cm3/m)	ClassEC : Part 5
L601 (S355GP)	600	310	7.5	6.4	46.8	78.0	11530	745	836	3
L602 (S355GP)	600	310	8.2	8.0	53.4	89.0	12870	830	964	2
L603 (S355GP)	600	310	9.7	8.2	64.8	108.0	18600	1200	1300	3
L604 (S355GP)	600	380	10.0	9.0	73.8	123.0	30400	1600	1862	3
L605 (S355GP)	600	420	12.5	9.0	83.5	139.2	42420	2020	2340	2
L606 (S355GP)	600	435	14.4	9.2	94.2	157.0	54375	2500	2820	2
L607 (S355GP)	600	452	19.0	10.6	114.0	190.0	72320	3200	3620	2

*B - Width

*H - Depth

*T - Thickness of Flange

*S - Thickness of Web

HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
